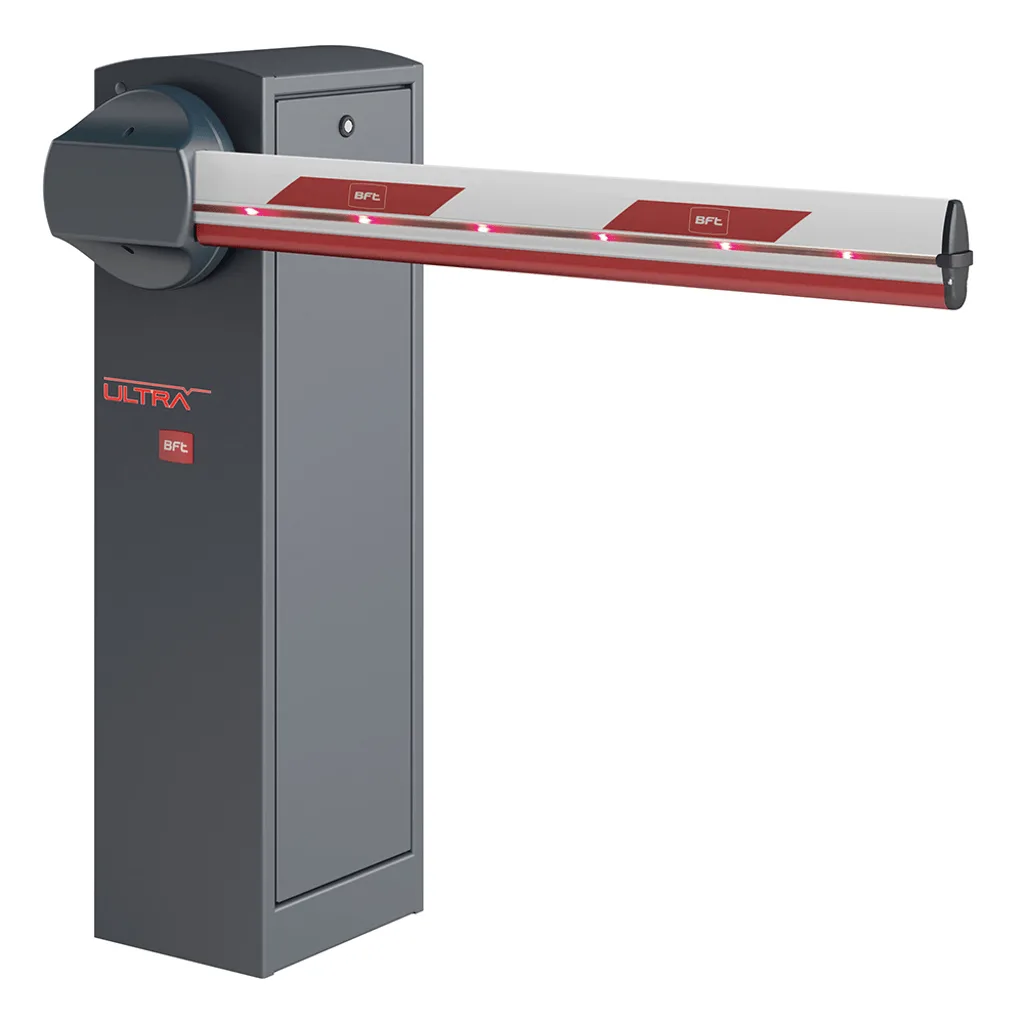

MAXIMA ULTRA 35 - Barrier Only
£2,279.99
230v Automatic Barrier The Maxima Ultra 35 is suitable for clear drive through gaps from 1.7m to 5m. This 230v electromechanical barrier is equipped with a three-phase induction motor and inverter designed for very intensive use. It was developed to…
This product is already in your quote.
Product Description
230v Automatic Barrier
The Maxima Ultra 35 is suitable for clear drive through gaps from 1.7m to 5m. This 230v electromechanical barrier is equipped with a three-phase induction motor and inverter designed for very intensive use. It was developed to operate in a wide variety of environments such as large car parks, motorway tolls, industrial sites and more.
The mechanical movement with connecting rod-crank mechanism controls the smooth operation of the boom, while managing slowdown in opening and closing. The same mechanism provides anti-vandal protection for the gear motor. The barrier is U-Link compatible which allows the integration of Parking Management or Building Management systems.
Features:
- Three-phase induction motor
- Control panel compatible with U-Link
- Anti-vandal protection with connecting rod-crank system
Specification
| Useful Passage |
1.7 – 5m
|
| Frequency of Use |
20000 ops per day
|
| Control Unit |
CSB Xtreme
|
| Motor Type |
Three phase induction
|
| Gear Unit Type |
In Oil Bath
|
| MCBF (Mean cycles between failure) |
5,000,000 Ops
|
| Motor Power Supply |
230v
|
| Opening or Closing |
0.7 – 3 secs
|
| Slowdown |
In opening and closing
|
| Lock |
Mechanical
|
| Release |
Inside The Structure
|
| Ambient conditions |
From -30°C to 60°C
|
| Protection Rating |
IP54
|
