The RISE Maximum M30 performed exceptionally in the crash–test, securing a negative penetration of 0.8 m, indicating that the truck bed stopped at 0.8 m in front of the bollard. To put that into context, specification sheets often refer to…
The RISE Maximum M30 performed exceptionally in the crash–test, securing a negative penetration of 0.8 m, indicating that the truck bed stopped at 0.8 m in front of the bollard. To put that into context, specification sheets often refer to a penetration grade P1, which according to ASTM is obtained when the truck bed passes beyond the bollard by a maximum distance of 1 metre. Therefore, the negative penetration value obtained by RISE at (-0.8 m) is an even higher performance result.

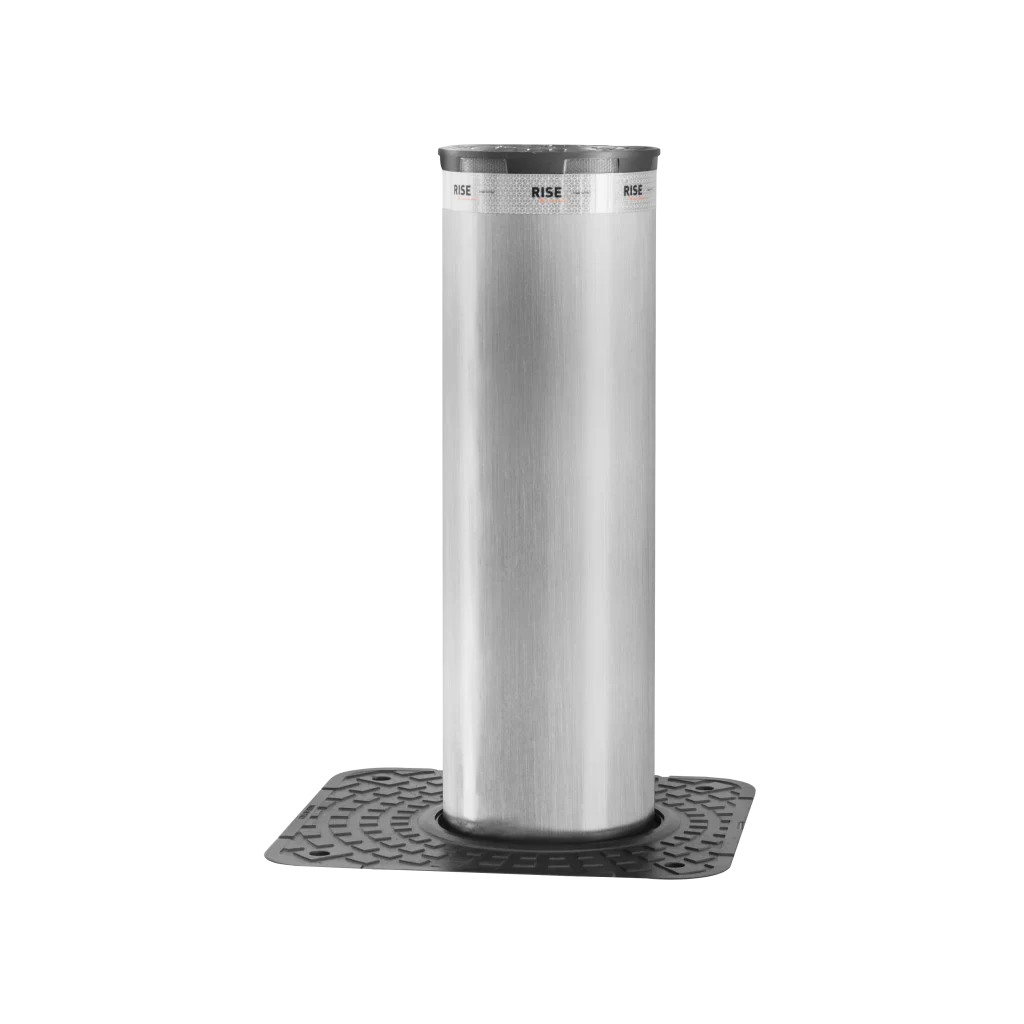

Cylinder available in painted steel or electropolished stainless steel AISI 316.
Able to withstand an impact with a vehicle of 7500 kg launched at a speed of 48 km/h.
The emergency function E.F.O. (Emergency Fast Operation) is available upon request and allows a fast raising in 1.5 seconds.
Cylinder available in painted steel or electropolished stainless steel AISI 316.

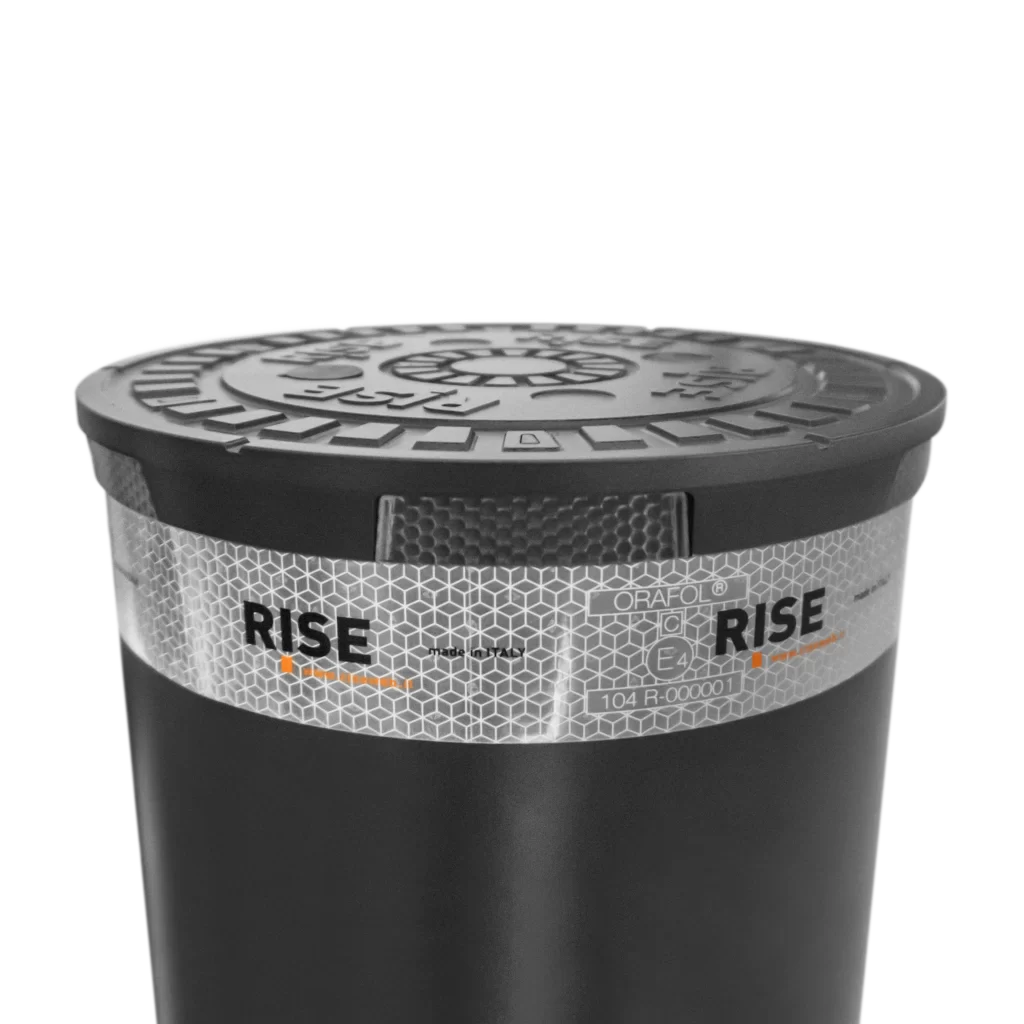

Cylinder with built-in LED lights, the control unit can manage 2 bollards at the same time.

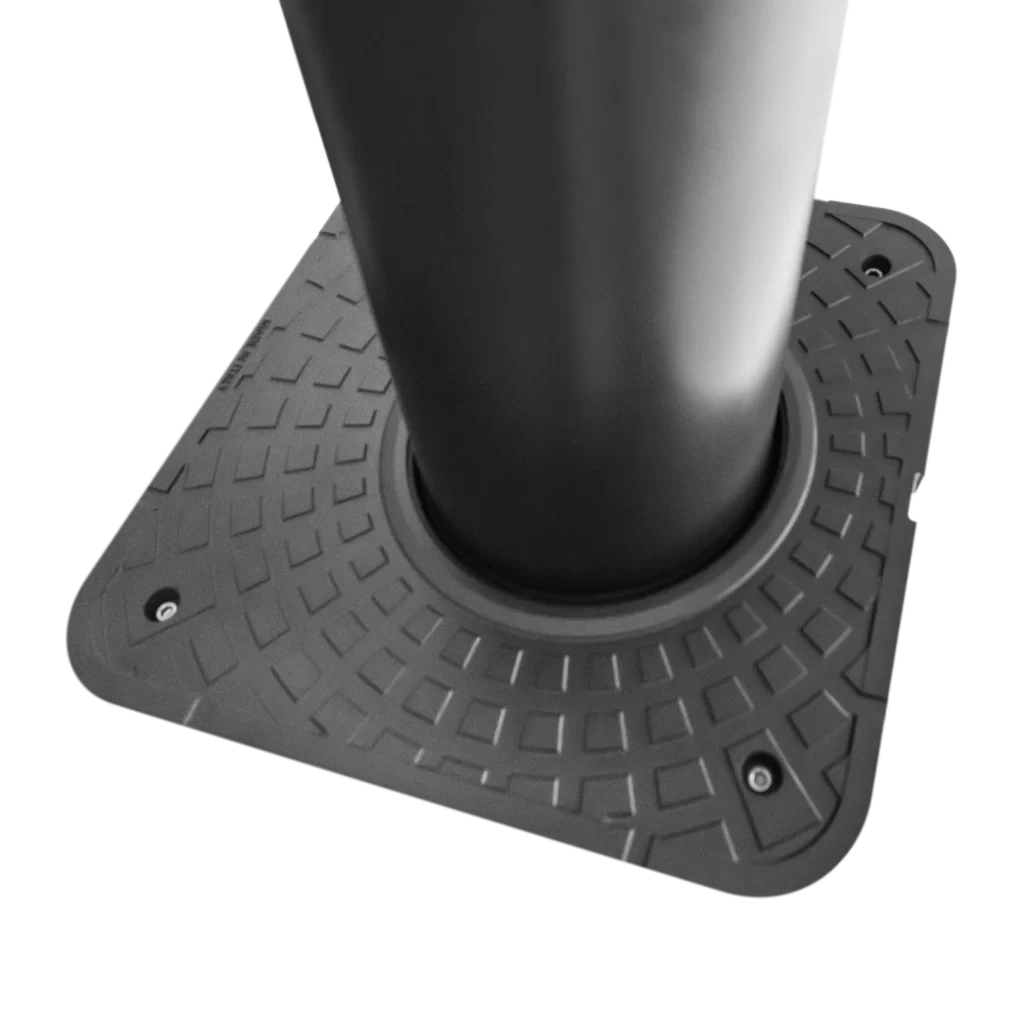

Foundation box complying with the EN124 (40T) regulation.

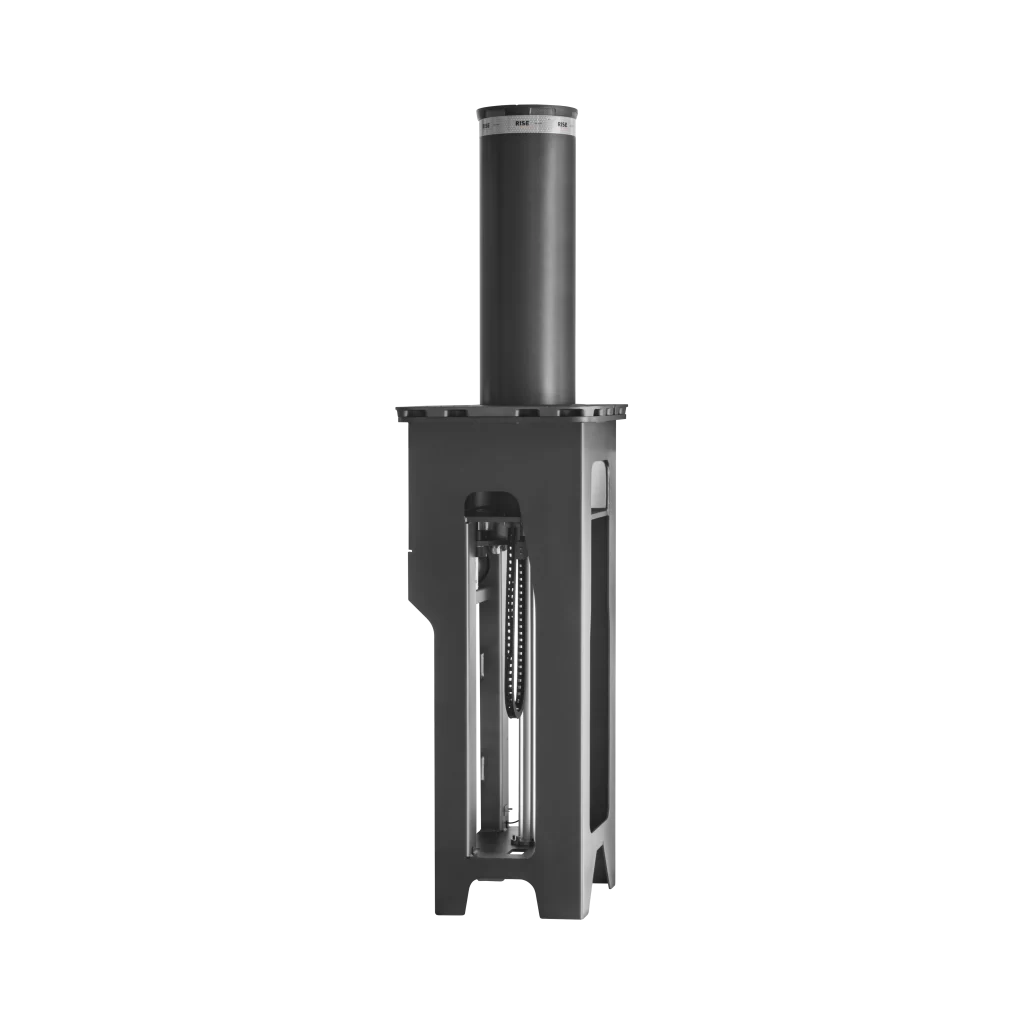

Independent hydraulic pump for each bollard, laterally positioned in order to avoid any damage in the event of an impact and facilitate the maintenance.
In the event of a power failure, the bollard will remain in the raised position (manual release).
The MAXIMUM M30 Automatic Bollard is also hydraulic, certified and a crash-tested bollard.
Cylinder available in painted steel or electropolished stainless steel AISI 316.
Able to withstand an impact with a vehicle of 7500 kg launched at a speed of 48 km/h.
The emergency function E.F.O. (Emergency Fast Operation) is available upon request and allows a fast raising in 1.5 seconds.
Cylinder available in painted steel or electropolished stainless steel AISI 316.
Cylinder with built-in LED lights, the control unit can manage 2 bollards at the same time.
Foundation box complying with the EN124 (40T) regulation.
Independent hydraulic pump for each bollard, laterally positioned in order to avoid any damage in the event of an impact and facilitate the maintenance.
In the event of a power failure, the bollard will remain in the raised position (manual release).
Dynamic vehicle penetration: -0.8 m.
Heating for the foundation box and buzzer available as accessories.
Suggested use: Embassies | Police stations | Military bases | Ministerial buildings | Sensitive sites | Company or factory access driveways.
