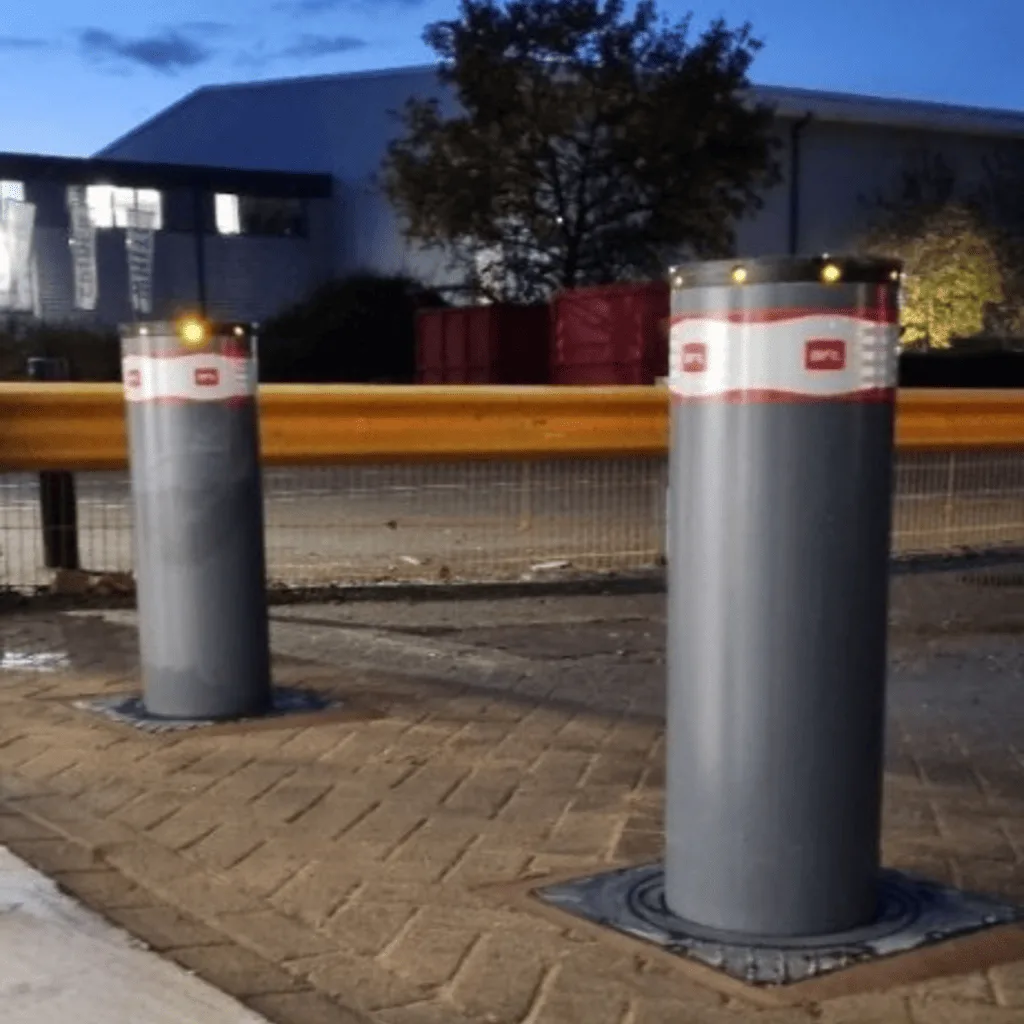

Pillar B 275/600 – Hydraulic Bollard


The Pillar B 275/600 hydraulic bollard has a large diameter and designed for high-intensity use. This model is ideally suitable for commercial access control protecting vehicles, business parks and buildings.

The Pillar B comes with a Failsafe or Fail Secure option: The Failsecure version is particularly suitable for sensitive site such as ministries, airports and other buildings of importance, as the shaft raises in the event of a power failure. The Failsafe version is suitable for public installations where the shaft must lower freeing the passage in the event of a power failure. These bollards have been designed and built with the aim of simplifying maintenance with the hydraulic pump located under the flange.

Operated by key fob, from your smartphone, or via an intercom, there will be an option that is suitable for your needs.

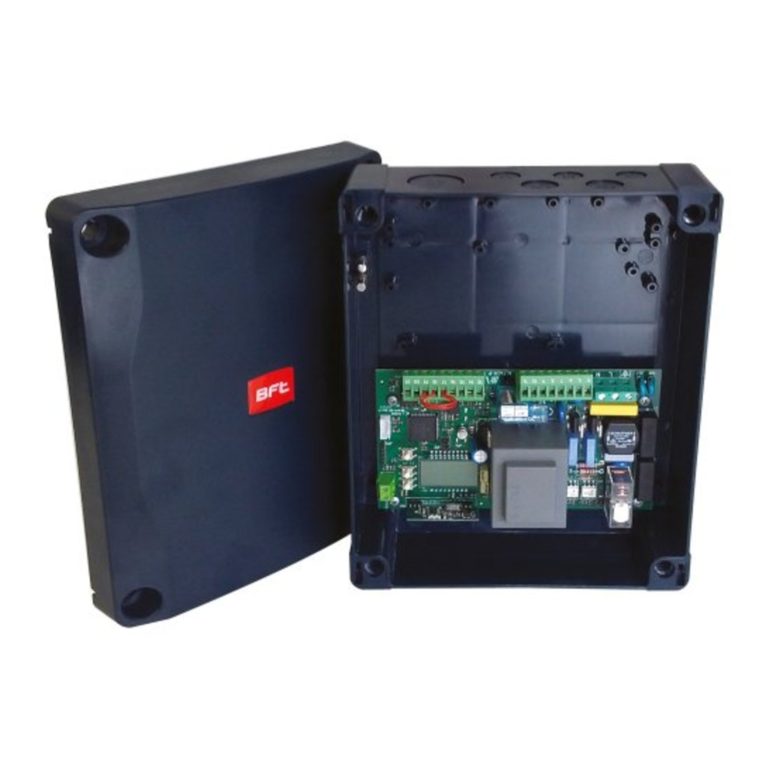

All the automatic bollards come complete as standard with a Perseo CBD dedicated control panel which manages up to 4 bollards in parallel and comes with a programming menu on the display, an integrated heating element and two key fob transmitters to operate the bollard.

If you would like any more advice on the various options and installation please contact us on 01535 509001

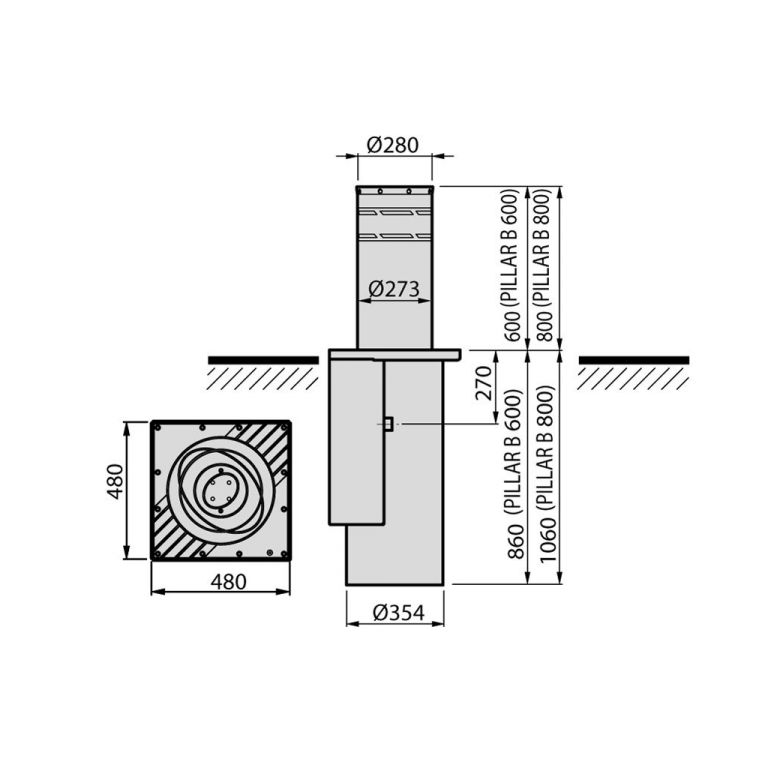

  • Diameter: 275mm
  • Height: 600mm above ground
  • Bollard wall thickness: 6mm



Additional information



Height (above ground)


Bollard Wall Thickness


Control Unit

Perseo CBD control unit is included

Transmitter/Key Fob (operates bollard)

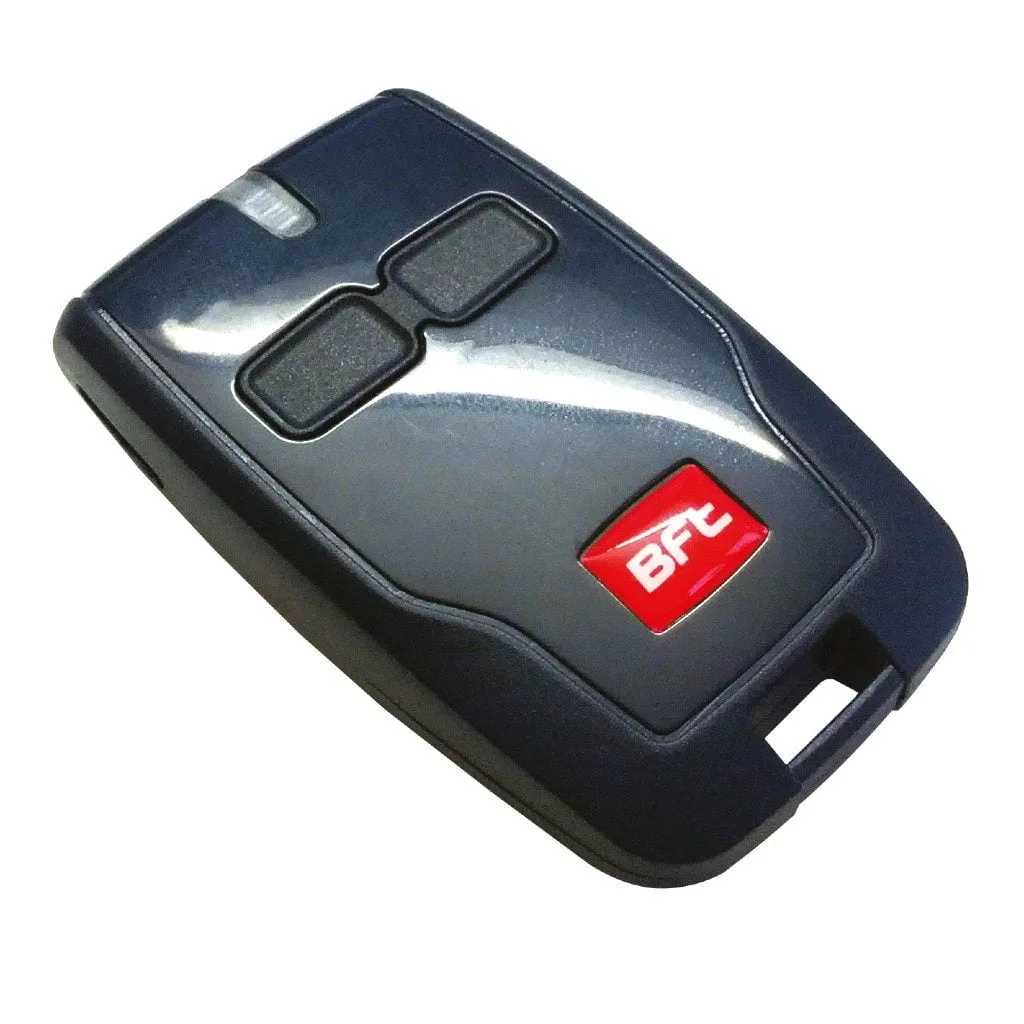

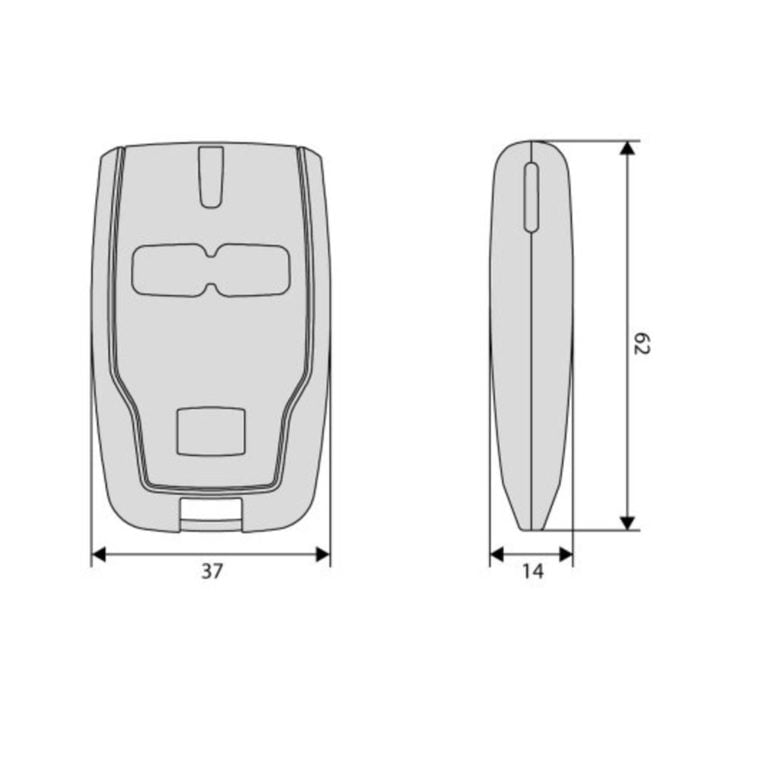

Mitto RCB 02 Key Fob included x 2


Suitable for residential and commercial applications


Galvanised steel with an Anthracite Grey – RAL 7015 finish

Operator Type


Bollard Material

Galvanised Steel

Rising Time

5 Seconds

LED Light Crown

LED light crown around top of bollard

Acoustic Warning Signal

Included (can be deactivated if required)

Breaking Resistance

250000 joules

Frequency of Use

Up to 3000 operations per day

Manufacturing Standards

BS1440 and BS EN ISO 1461 (2009)


12 month for product and installation
