Truck Stopper 5-50 Shallow Mount PAS68 Bollard - Crash Tested to stop a 7500kg vehicle @ 50mph
Truckstopper 5 is one of the shallowest impact-tested bollards available on the market today, with a foundation depth of just 400mm, reducing the need to re-divert utilities. This allows for installation at a fraction of the cost of traditional bollards.…
Product Description
Truckstopper 5 is one of the shallowest impact-tested bollards available on the market today, with a foundation depth of just 400mm, reducing the need to re-divert utilities. This allows for installation at a fraction of the cost of traditional bollards. This crash-tested PAS 68/IWA 14 anti-terrorist bollard stops an 7.5 tonne truck travelling at 50mph/80km/h
Read More
The Truckstopper 5-50 is a patented spring-loaded bollard system from Safetyflex, engineered to absorb impact by flexing and redirecting kinetic energy back toward the vehicle—rather than transferring force into the foundations. Designed to follow ground contours, it can navigate corners without requiring special components and can also be removed to allow vehicle access.

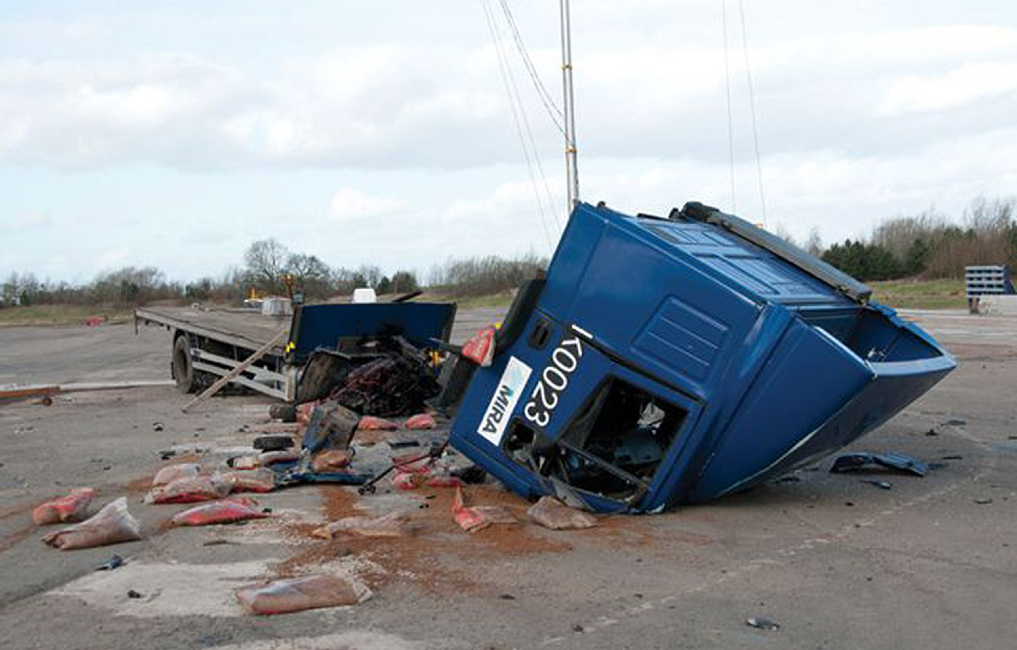

With shallow foundations just 400mm deep and 1.2m wide, the Truckstopper 5 was successfully crash tested at MIRA to BSI PAS 68:2010, stopping an 7.5 tonne truck at 50mph (80km/h) at a 90-degree angle. If damaged, the bollard can be removed and replaced without disturbing the foundations.
Built for low maintenance, the steel structure offers a 20-year lifespan and only requires occasional repainting. Bollards can also be supplied with mild or stainless steel shrouds.
Bespoke shrouds are available to meet specific aesthetic requirements.
Specification
| Security Rating |
BSI PAS 68:2010 V/7500(N3)/80/90:6.0/18.8
|
| Application |
High Risk Areas
|
| Foundation Depth |
400mm
|
| Foundation Area |
1200mm (l) x 400mm (d)
|
| Shroud Material |
Grade 316 satin polished stainless steel as standard
|
| Shroud Finish (as Standard) |
The shroud is available in any design/material as requested. Please contact us to discuss your exact requirements.
|
| RAL Colours |
All standard RAL colurs are available
|
| Core Material |
Steel spring
|

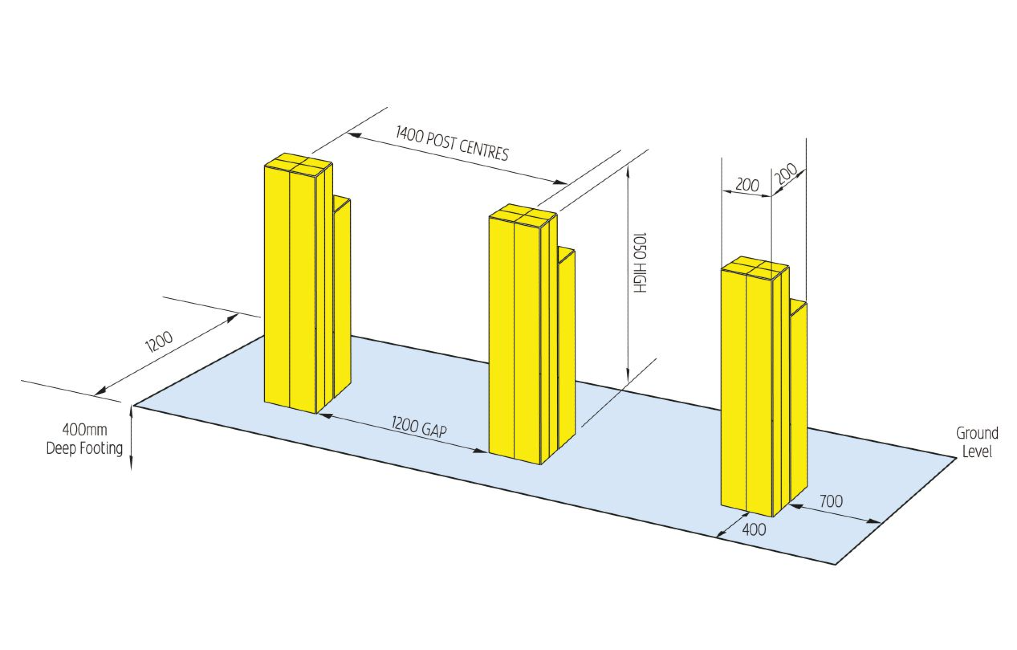

| Test Core Dimensions |
200MM W X 200MM L X 1050MM H FROM FFL
|
| Height (above ground) |
1050mm
|
| Bollard Spacing |
1400mm centres, 1200mm spacing between tested cores
|
| Minimum Array |
Three
|
| Fixing |
Root fixed in concrete using compliant rebar cage
|
| Warranty |
12 month for product and installation
|
