We offer installation nationwide. For a competitive quote please contact our sales team.

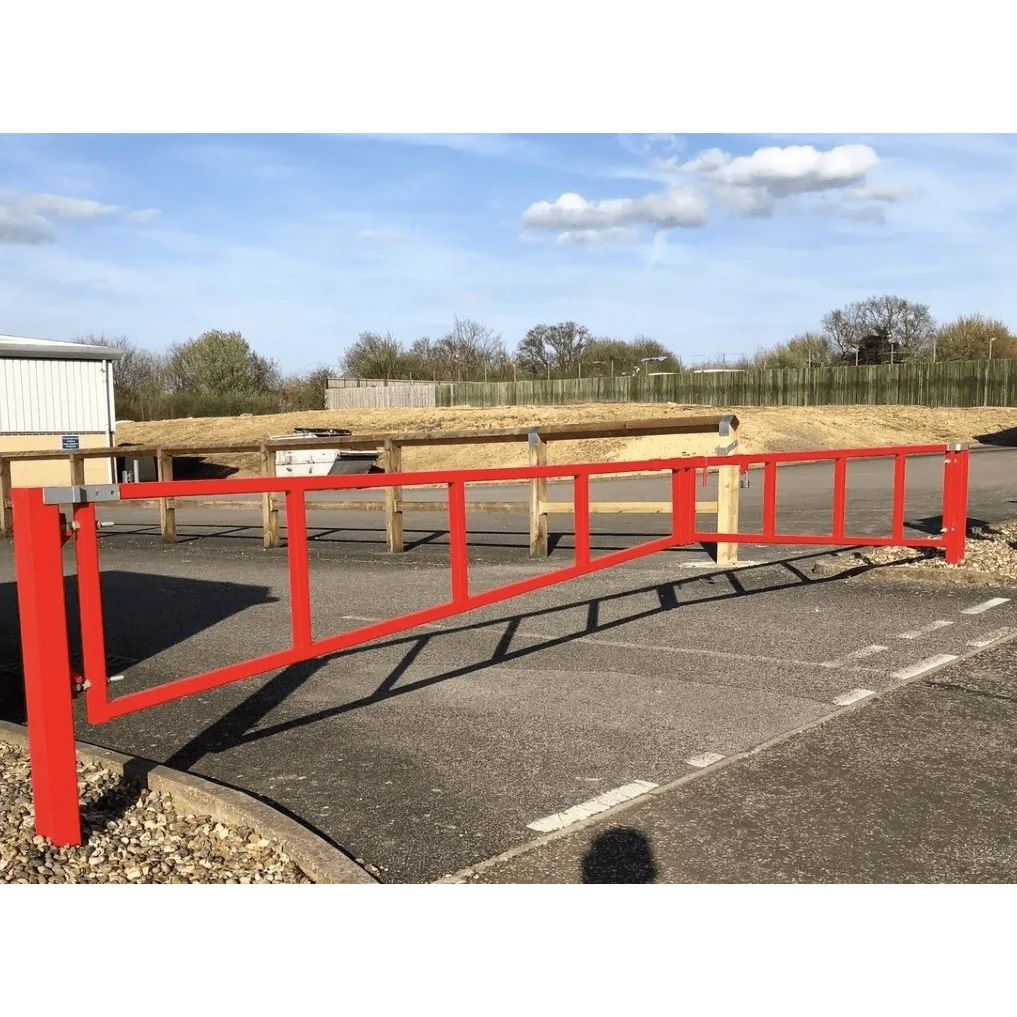

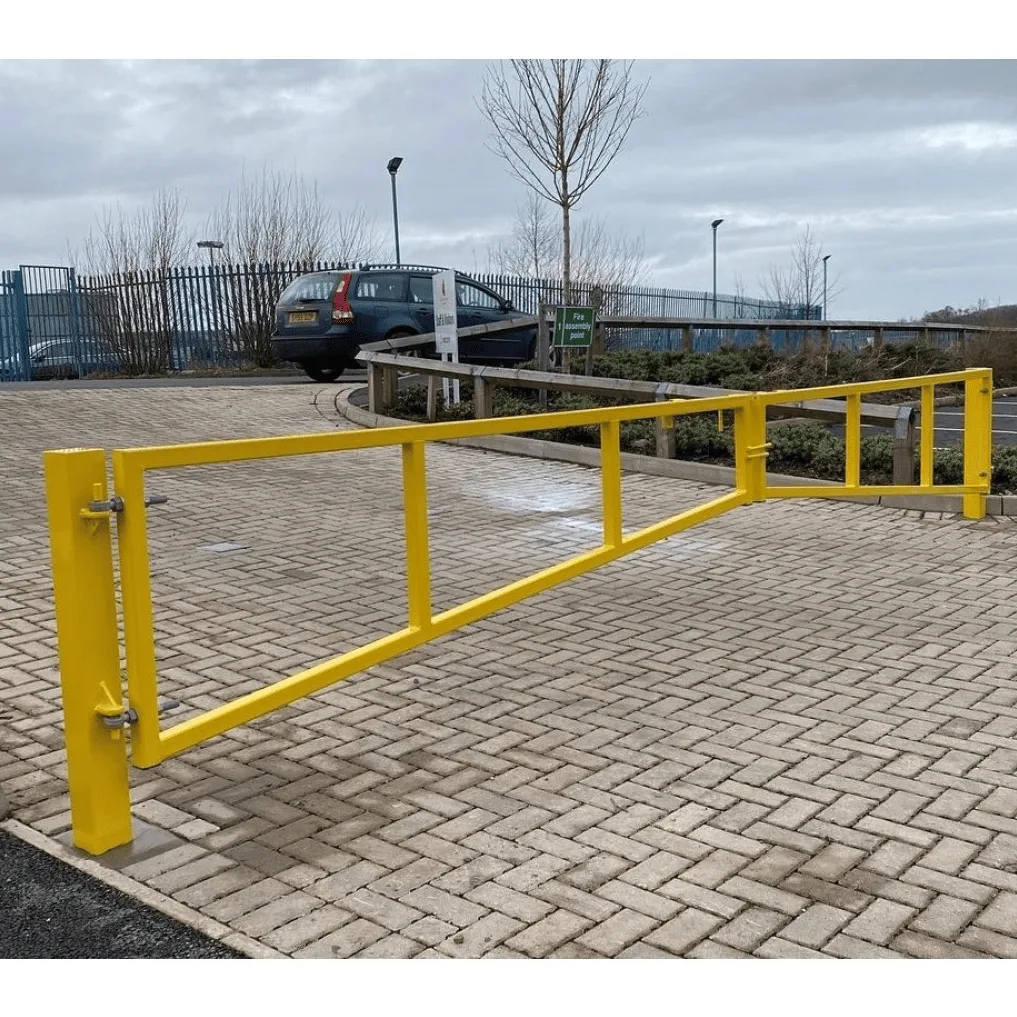

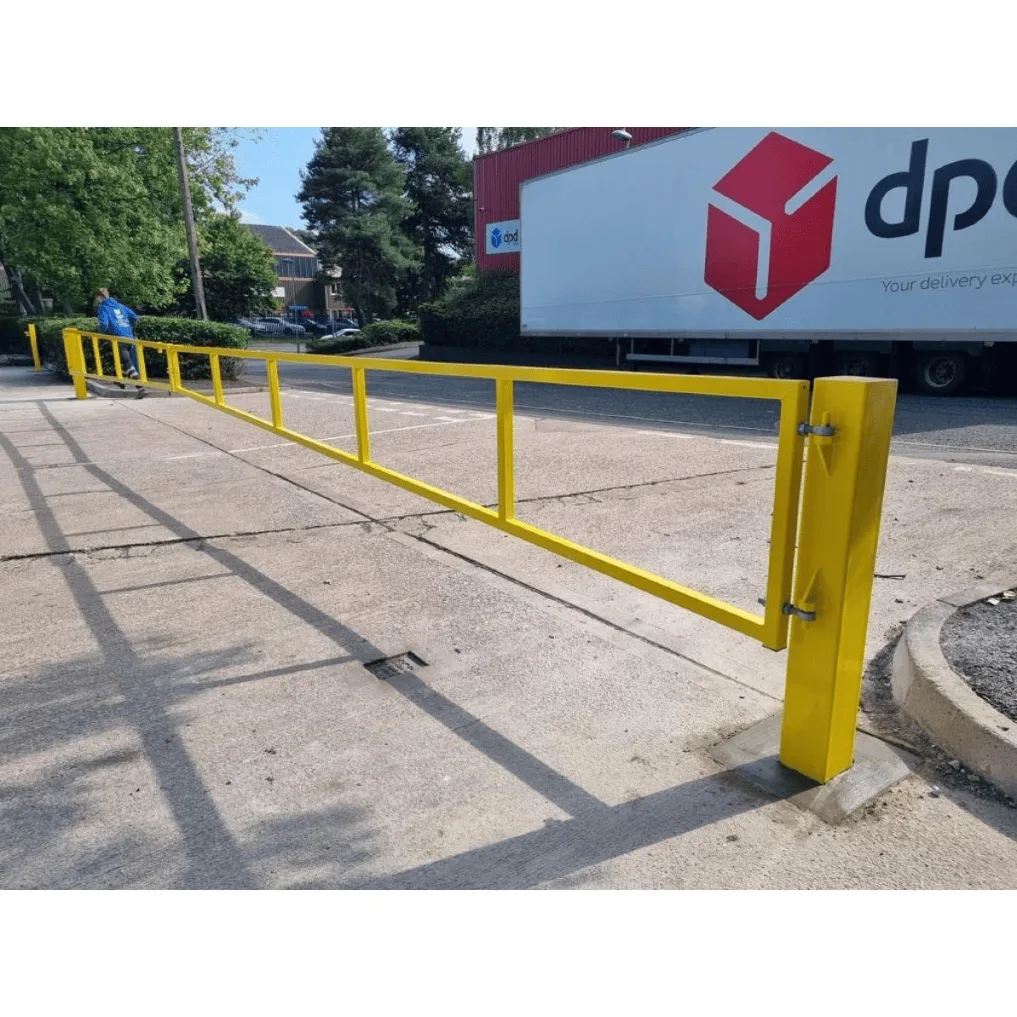

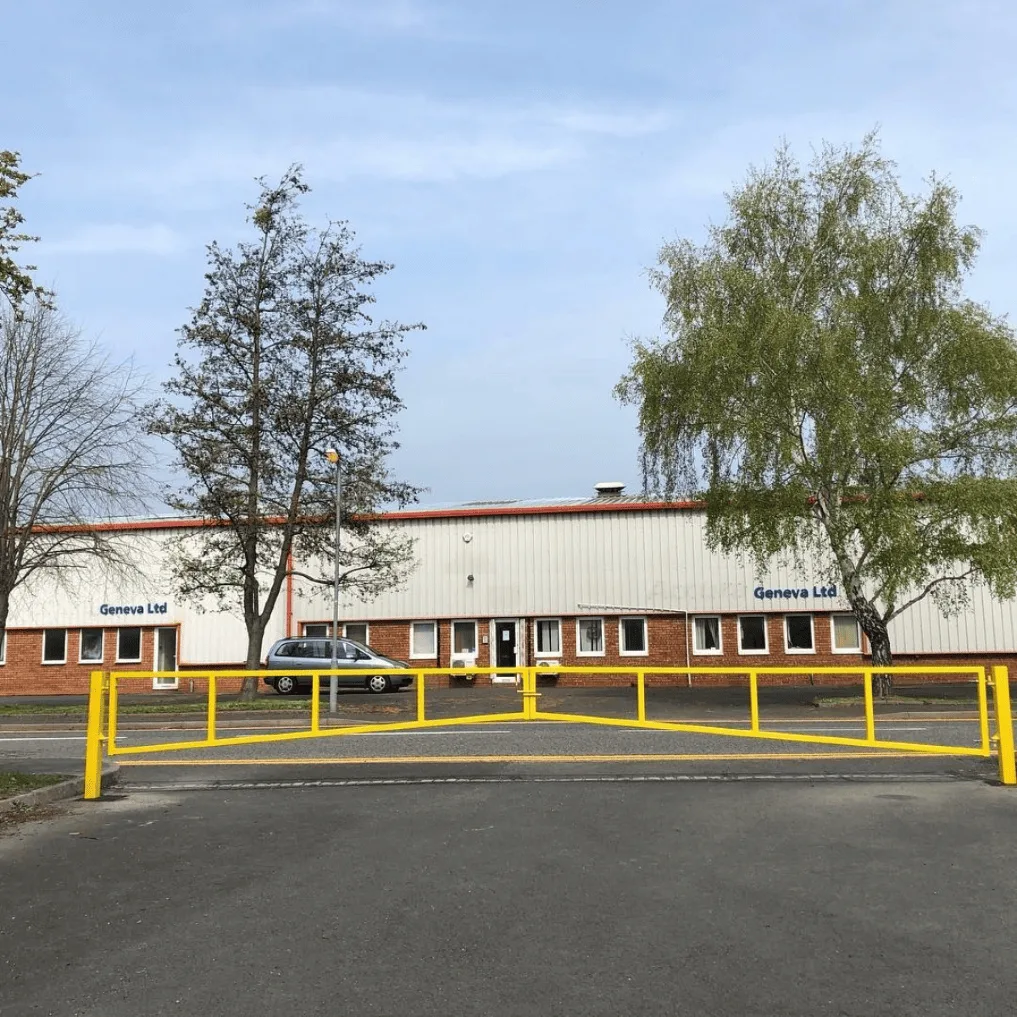

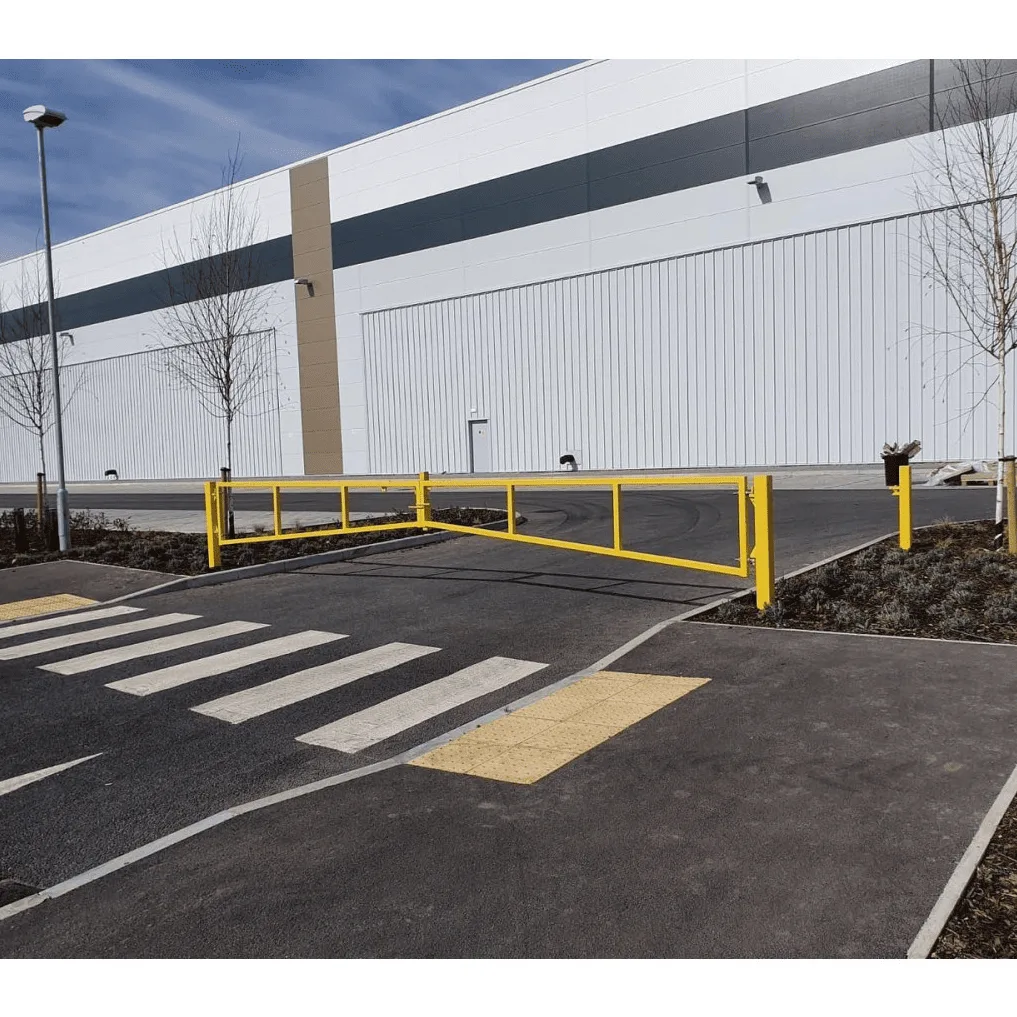

Our heavy duty, manually operated swing gate is one of the most popular solutions to controlling access. Most commonly used, but not limited to areas such as car parks, entrances and recreational grounds.
Our double leaf gates are complete with a centrally positioned sliding latch, with padlock facility to secure the gates in the closed position. Lock shrouds are available at an additional cost to increase the security of your chosen padlock. Our shrouds are manufactured from heavy duty steel and are fabricated around the locking facility to deter the use of tools to cut the padlock.
Our gates are all supplied with galvanised heavy duty adjustable eyebolts. Enabling adjustment at the installation stage for the perfect alignment.
We offer both root fixed (concrete in) and surface mounted (bolt down) fixtures to suit all requirements however, we recommend concreting in for the most secure solution.
Gates can be secured in the open position with the additional purchase of a latch back post. These are manufactured with a self-locking catch facility and complete with a padlock facility, in the event that the gates need to be locked in the open position.
Please note, latch back posts will be manufactured to suit the same fixture as the gate (concrete in or bolt down)
Please be advised, as this product is made to order you may be required to confirm sizing before manufacture can commence
Key Features
– Gated heavy duty design
– Tapered to benefit locations with ground slope
– Supplied with heavy duty sliding latch & padlock facility
– Supplied with heavy duty & galvanised eye bolts
– Lock Shroud (extra) for added security
– Concrete in or bolt down option
– Galvanised and/or powder coated
– 180 degree swing, dependent on hinge position
Specification
– Height Above Ground – 1000mm
– Hinge Post Below Ground – 760mm (concrete in)
– Latch Back Post Below Ground – 500mm (concrete in)
– Gate Frame – 50 x 50mm Box Section
– Hanging Post – 100 x 100mm Box Section
– Latch Back Post – 100 x 100mm Box Section
– Bolt Down – Bolt holes are 16mm Dia (Fixings not supplied)
– Other Powder Coating Colours Available on Request
Delivery (made to order)
Powder Coated Only 7-14 working days
Galvanised Only 7-14 working days
Double Finish (Galvanised & Powder Coated) 14-21 working days
Warranty Information
This product comes with a 1 year warranty as standard
