FAAC B614 Automatic Arm Barrier Kit - For Openings Up To 6m
- Lead Time 5 Working Days
Out of stock
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview

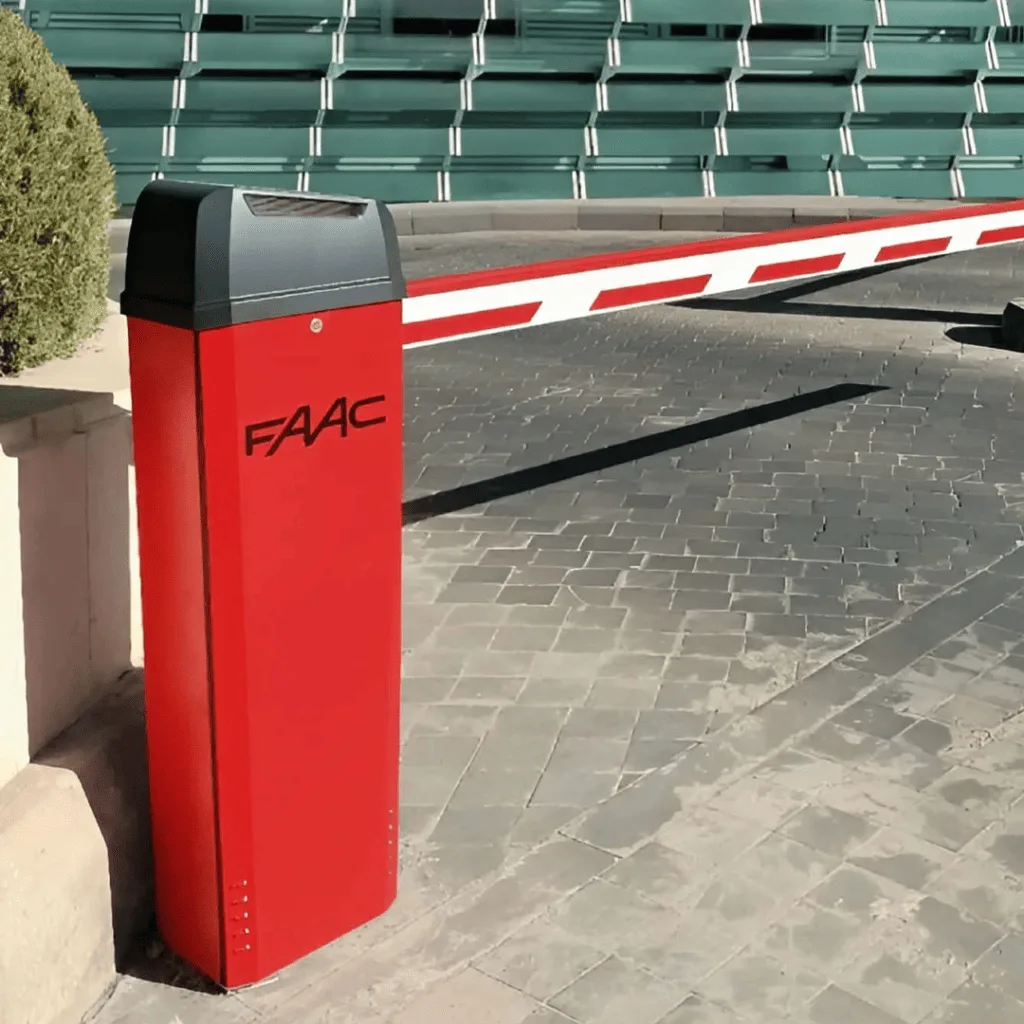

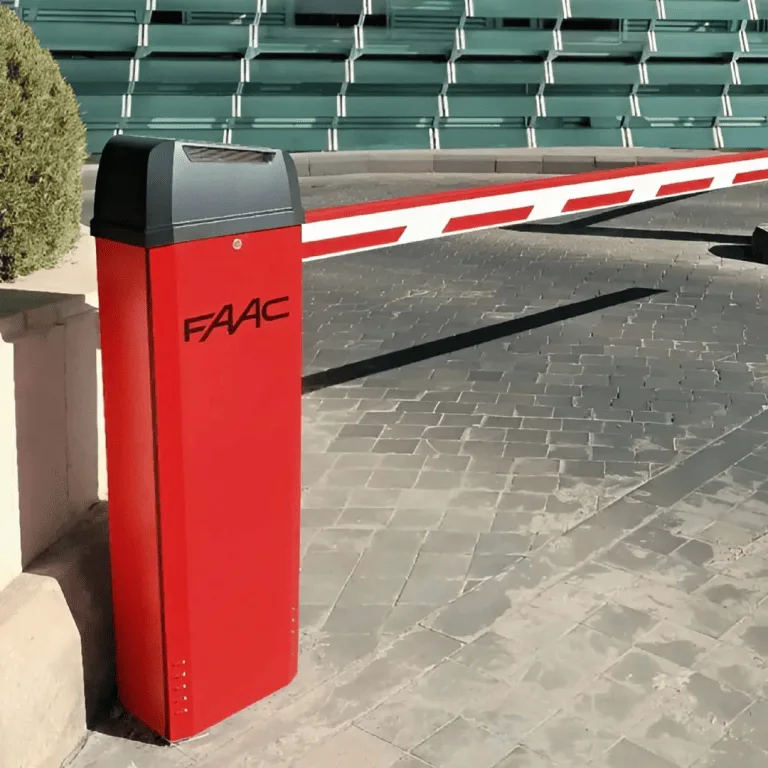

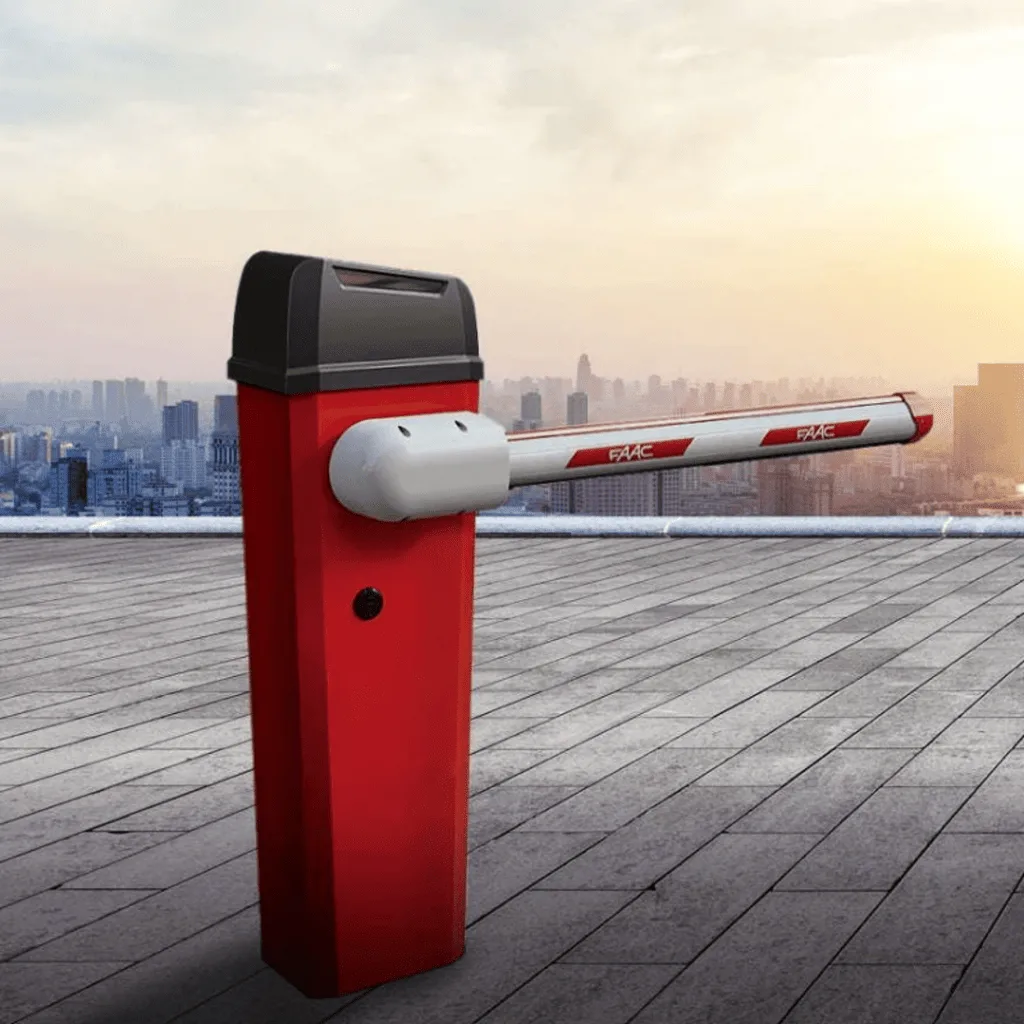

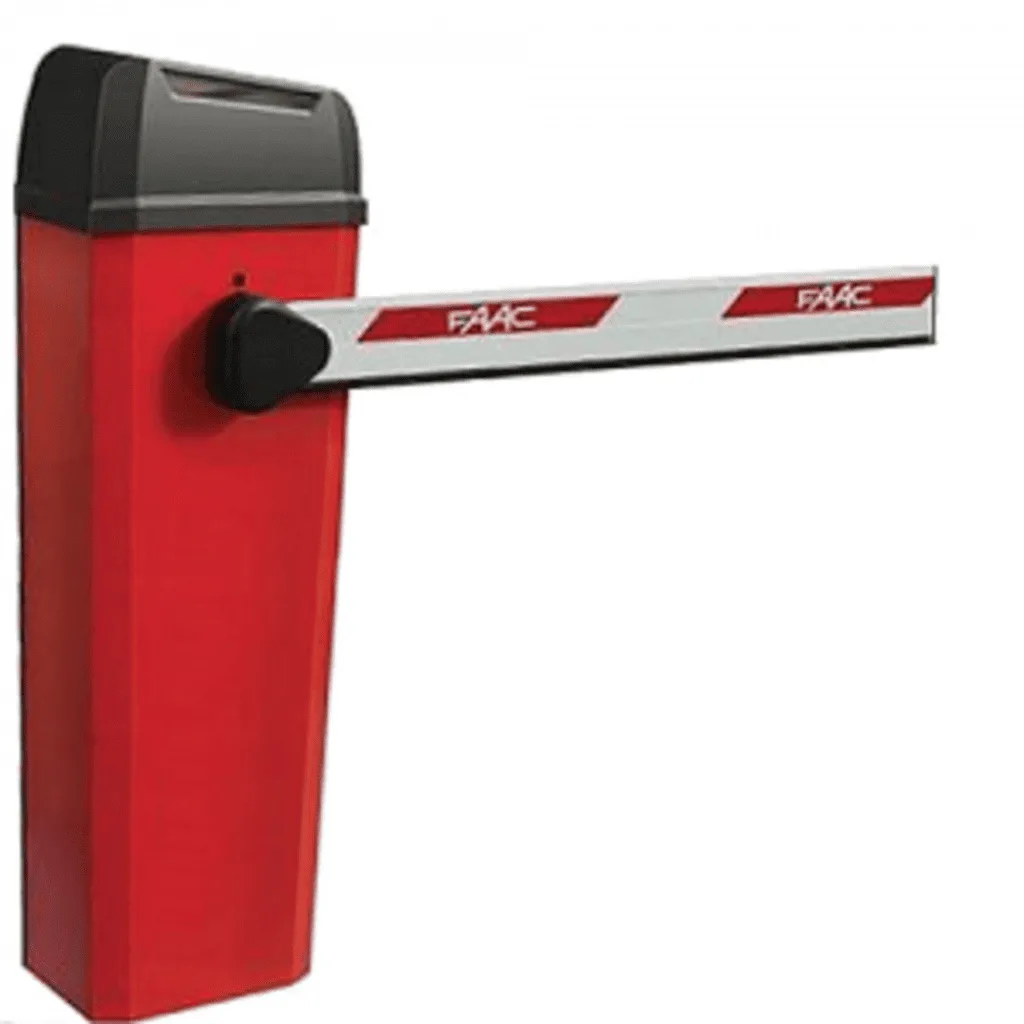

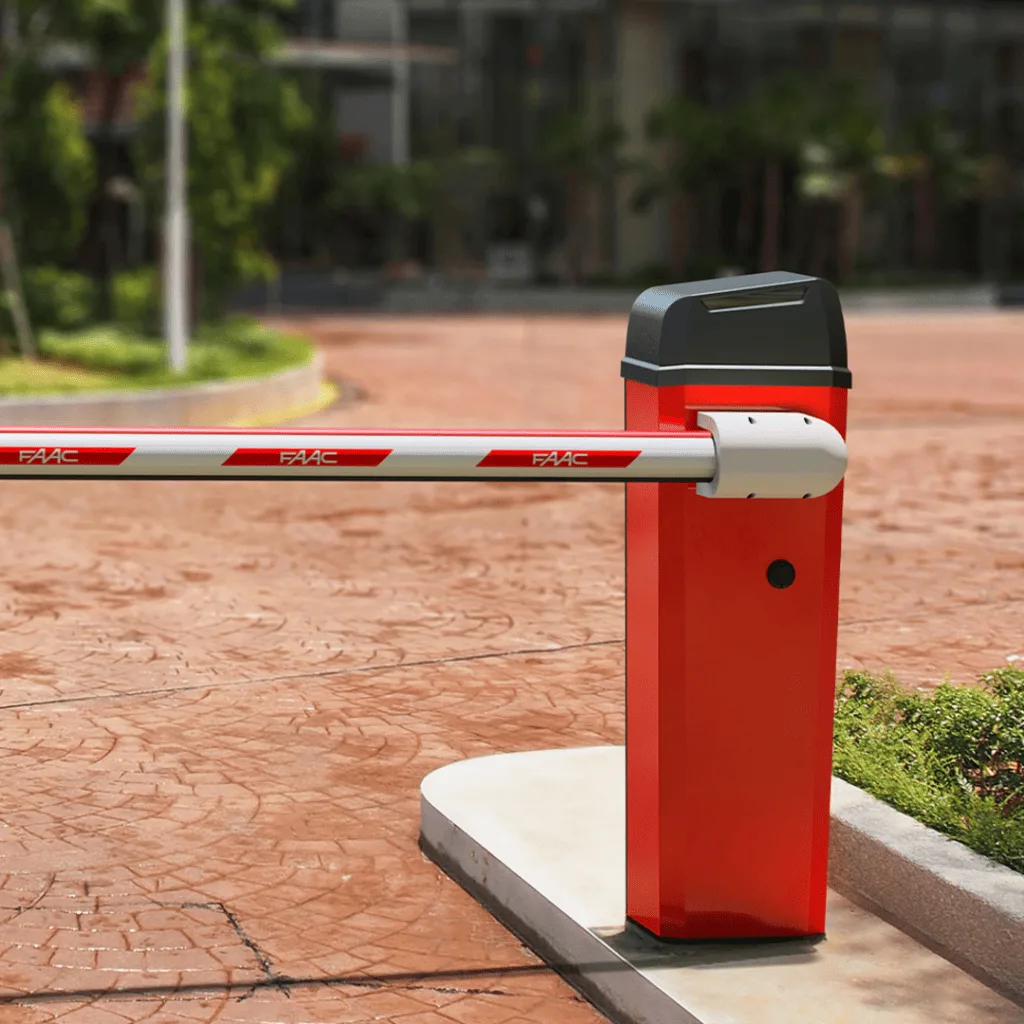

The FAAC B614 Automatic Barrier Kit combines fast, reliable operation with advanced safety features, supporting beam lengths up to 6 metres for efficient vehicle access control.
The FAAC B614 Automatic Barrier is a modern, high-performance solution designed for controlling vehicle access in residential and light commercial settings. Featuring user-friendly electronics housed under a protective cover, it allows quick configuration through buttons and display and includes a universal radio decoding system for flexible connectivity.
Powered by a 24 V motor with an integrated incremental encoder, the barrier delivers precise, smooth operation and ensures maximum safety with automatic reverse-on-contact functionality. A robust quadrilateral lever system with dual reduction stages guarantees fluid beam movement and long-term reliability.
Capable of supporting beams up to 6 m, the B614 can complete a standard swing in under 2 seconds with a 3 m beam at an 80° angle. Built from galvanised and powder-coated steel, it offers long-lasting performance and resistance to harsh weather conditions.

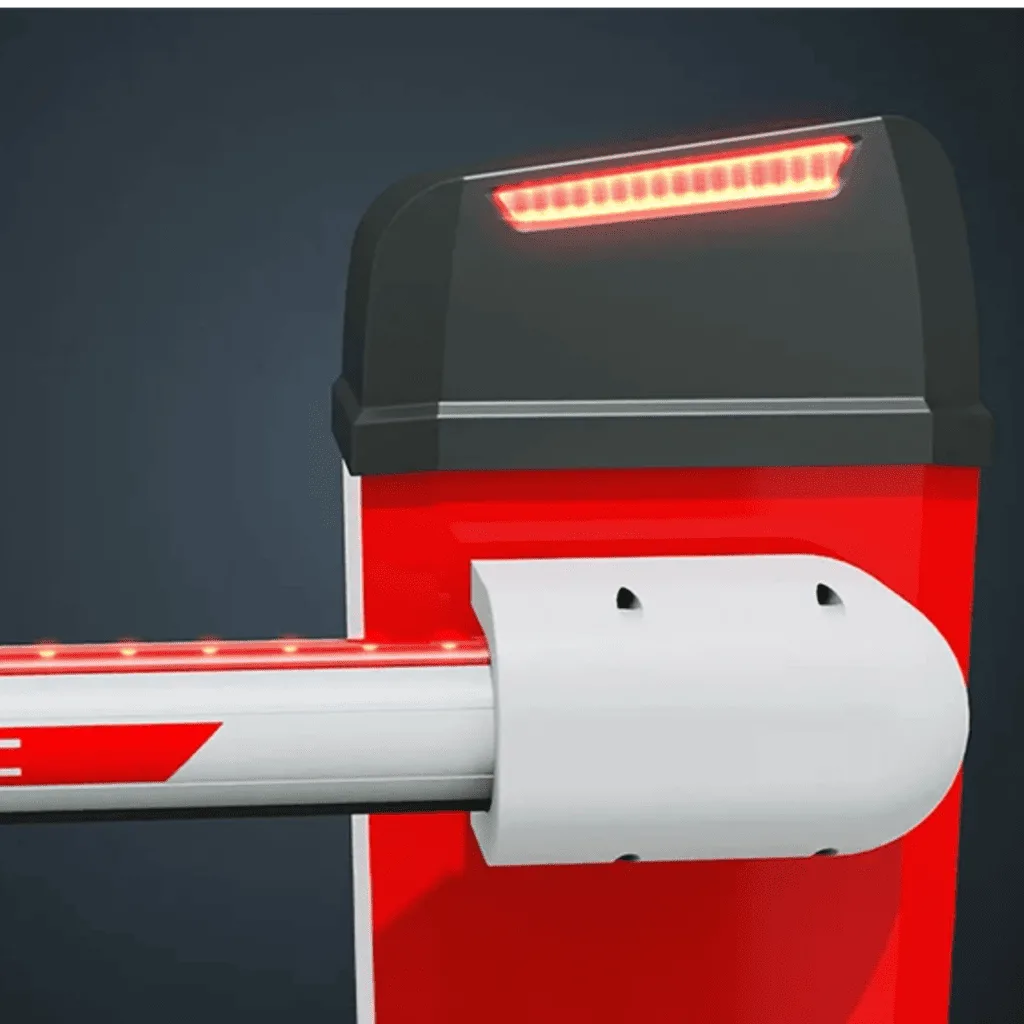

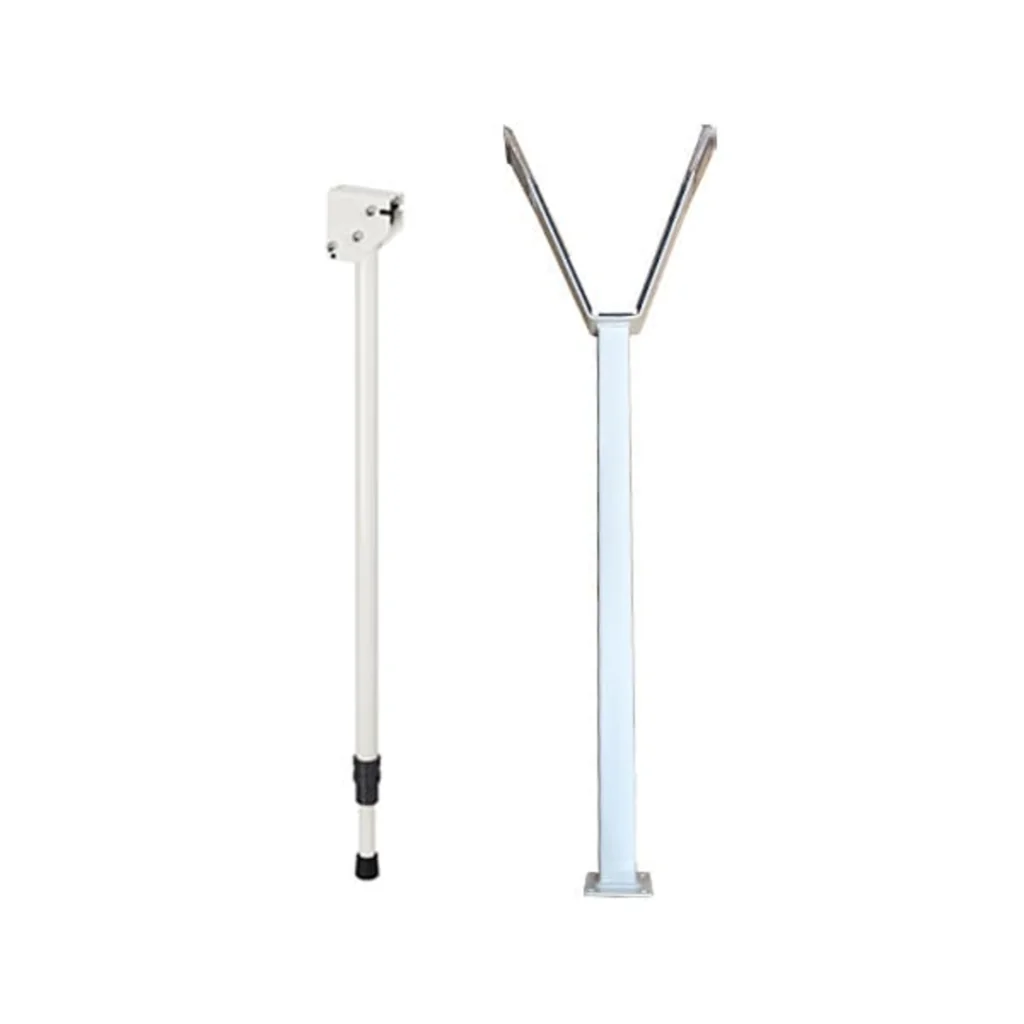

A wide selection of accessories is available, including flashing traffic lights, LED beam lighting, reflective strips, support forks and mounting kits, making it easy to tailor the barrier to specific site requirements.

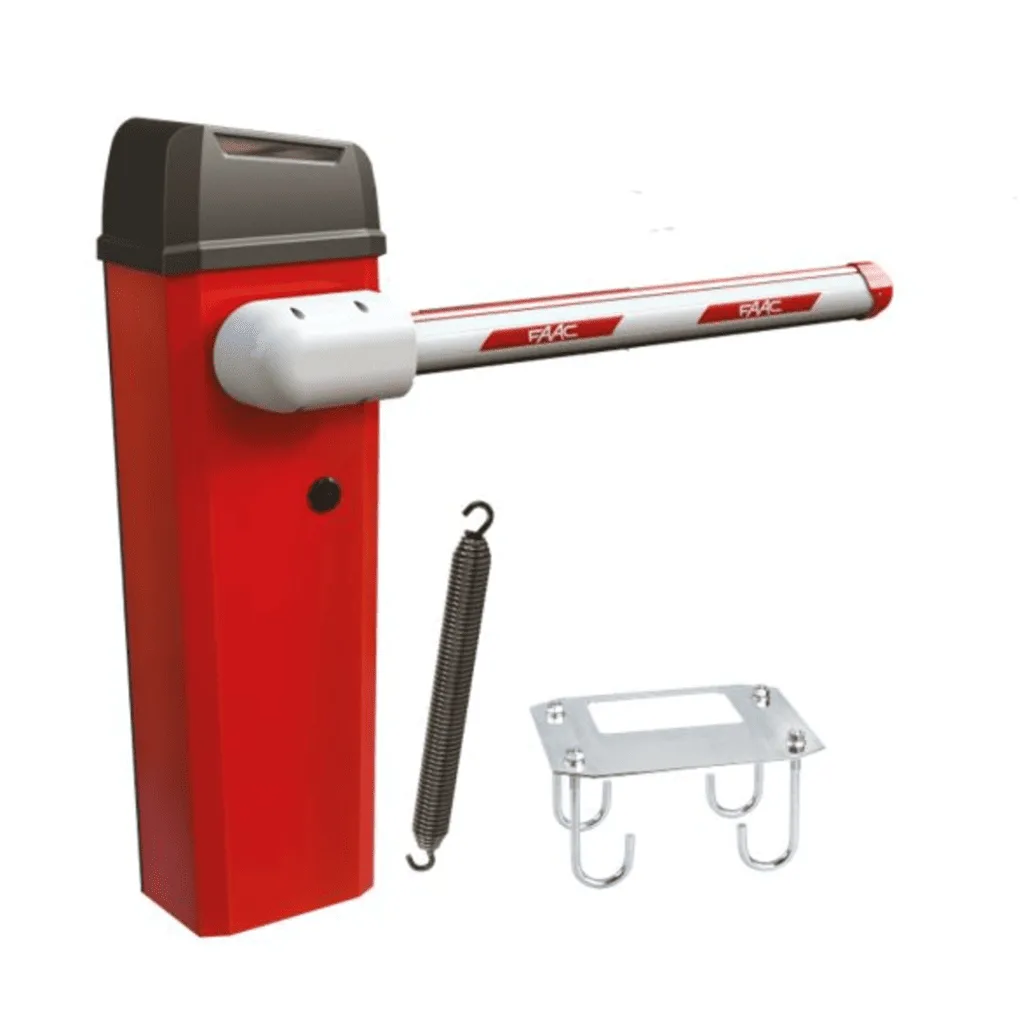

Included in the kit:
- 1 x B614 24v barrier
- 1 x Integrated control panel
- 1 x Boom inc. fixing bracket (round beam as std. – optional rectangular beams offered)
- 1 x Foundation Plate
- 1 x Spring(s)
To discuss your bollard options and installation, please get in touch with one of our sales team at 01535 509001
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-
Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Product Media
Watch product and installation videos, and browse real project photography.
Project Images
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Useful Passage | Up to 6m |
|---|---|
| Frequency of Use | Continuous Use |
| Application | Light Commercial |
| Electric Motor | 24v Brushed |
| Max Power | 165W |
| Max Torque | 300 Nm |
| Back Up Batteries | Yes (optional) |
| Material | Steel |
| Surface Treatment | Pre-hot dip galvanized, 20μm thick + polyester powder coated |
| Encoder | Incremental, integrated in the motor |
| Decleration Type | Electronic + mechanical |
| Beam Type | Rectangular and rounded |
| Ambient Operating Temperature | -20°C to +55°C |
| Protection Class | IP55 (Electronic control unit) – IP44 |
| Weight | 40kg |
| Electronic equipment | E614 |
Downloads
Datasheets, drawings and certificates for this product.
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|
|
FAAC B614 Automatic Arm Barrier Kit – For Openings Up To 6m Current model | Light Commercial | 12 Months | ||||
|

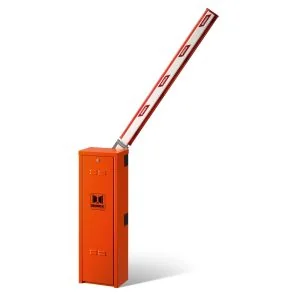

Beninca Lady 4 “Entry Level” Automatic Arm Barrier – For Openings between 2m & 4m | Suitable for residential and commercial applications | 12 Months | Installation available | |||
|
|
Beninca Lady 5 “Entry Level” Automatic Arm Barrier – For Openings between 4m & 5m | Suitable for residential and commercial applications | 12 Months | Installation available | |||
|

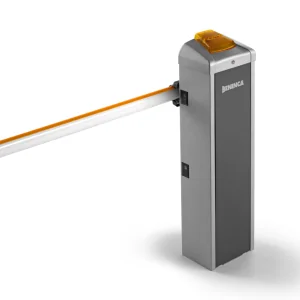

Beninca EVA 5 Automatic Arm Barrier – For Openings between 3m & 5m | Suitable for residential and commercial applications | 12 Months | Installation available |
