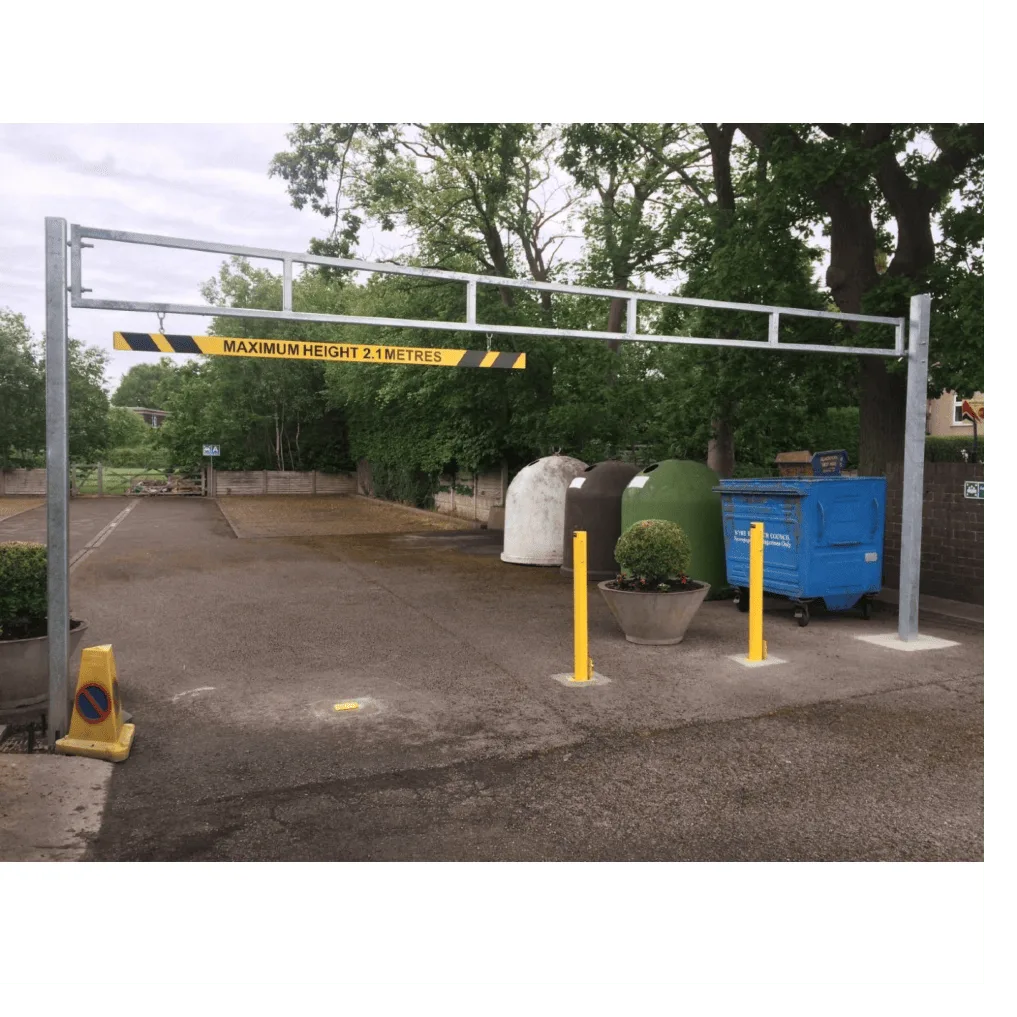

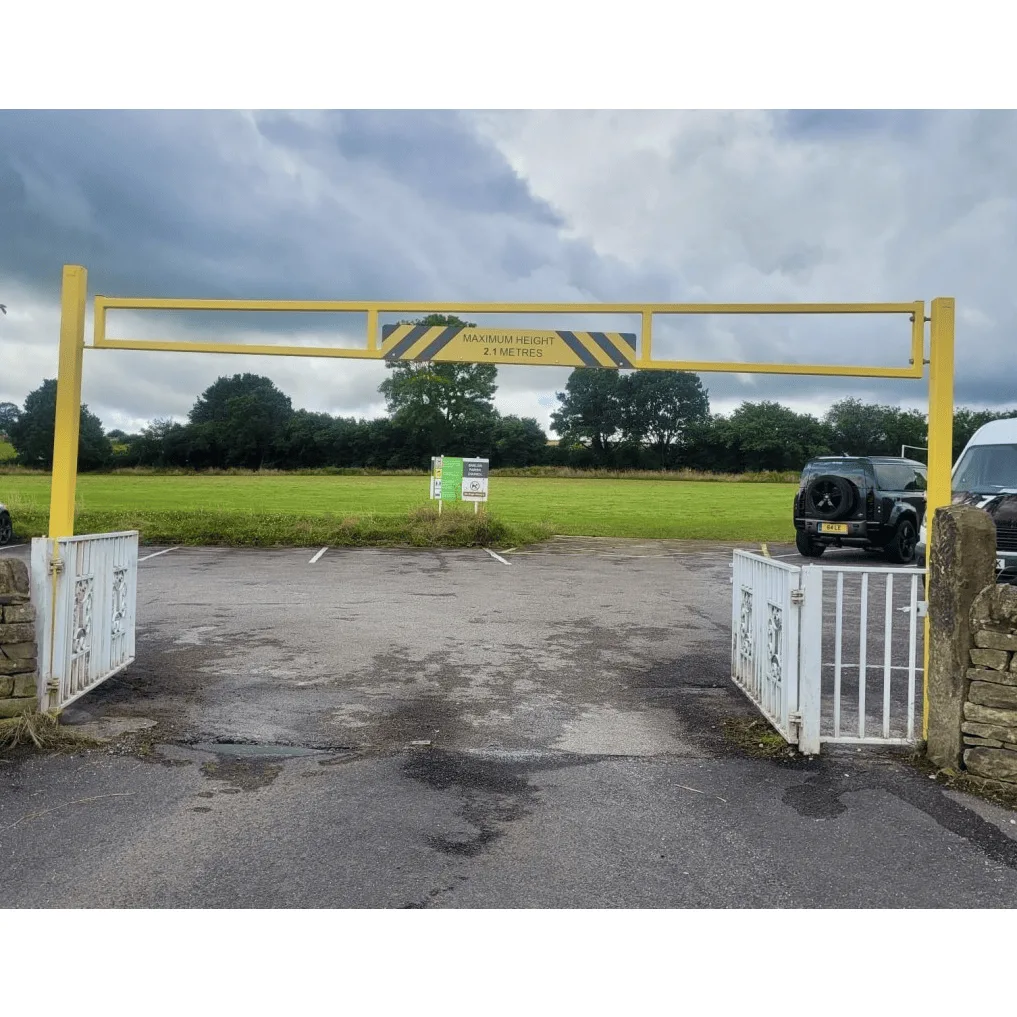

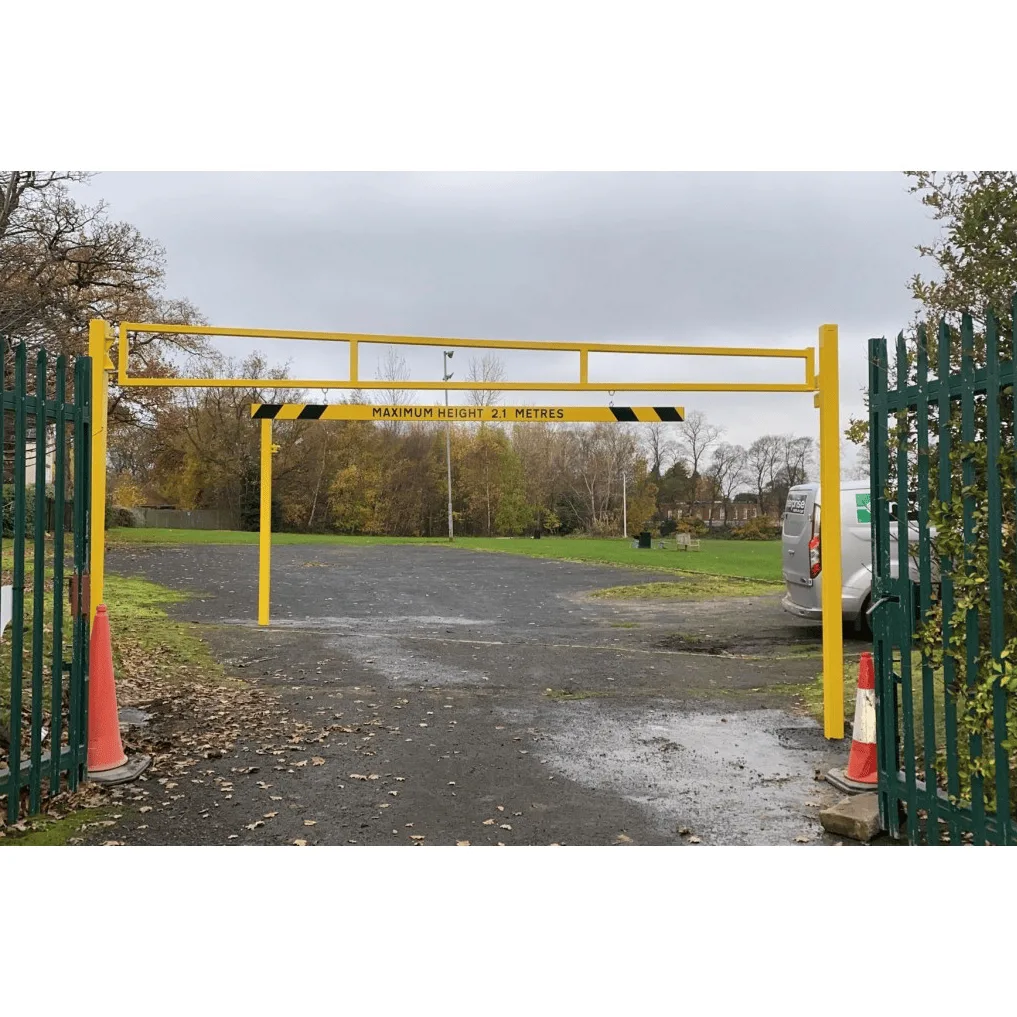

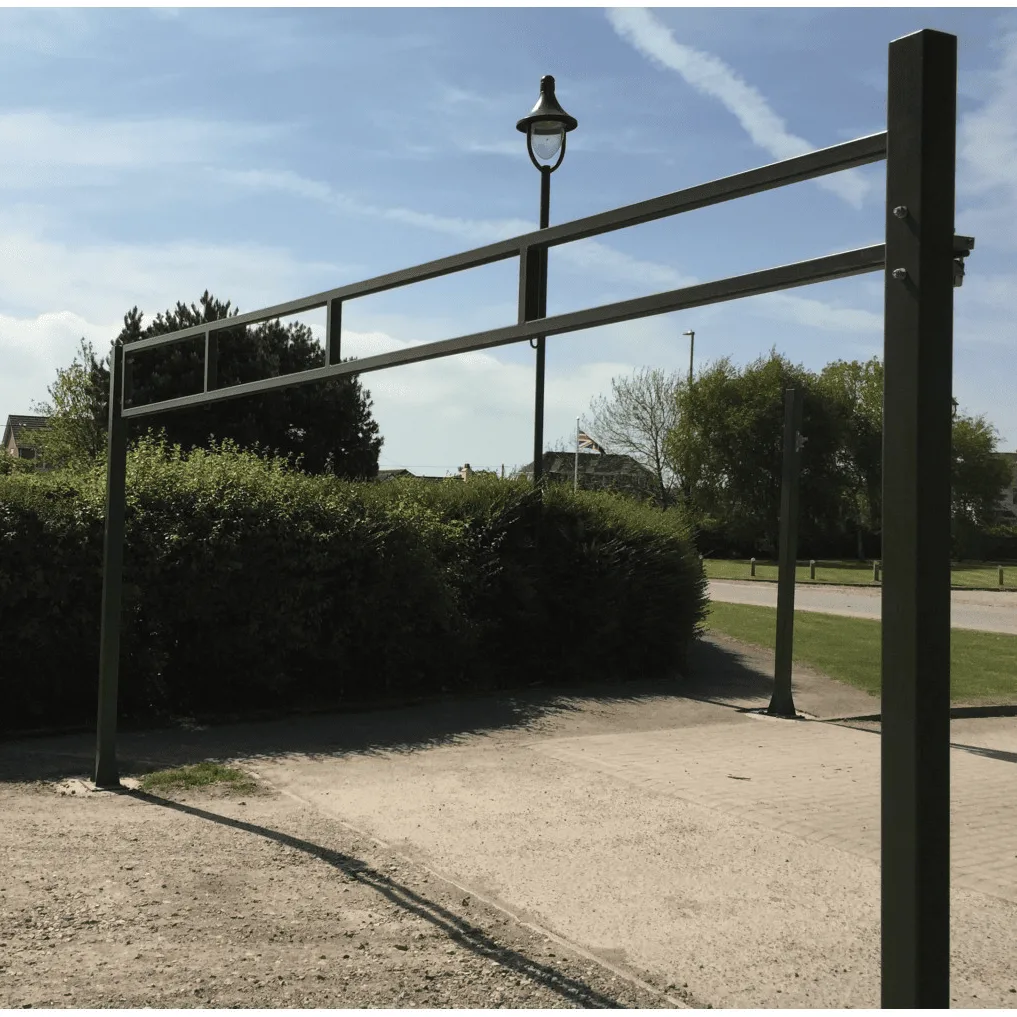

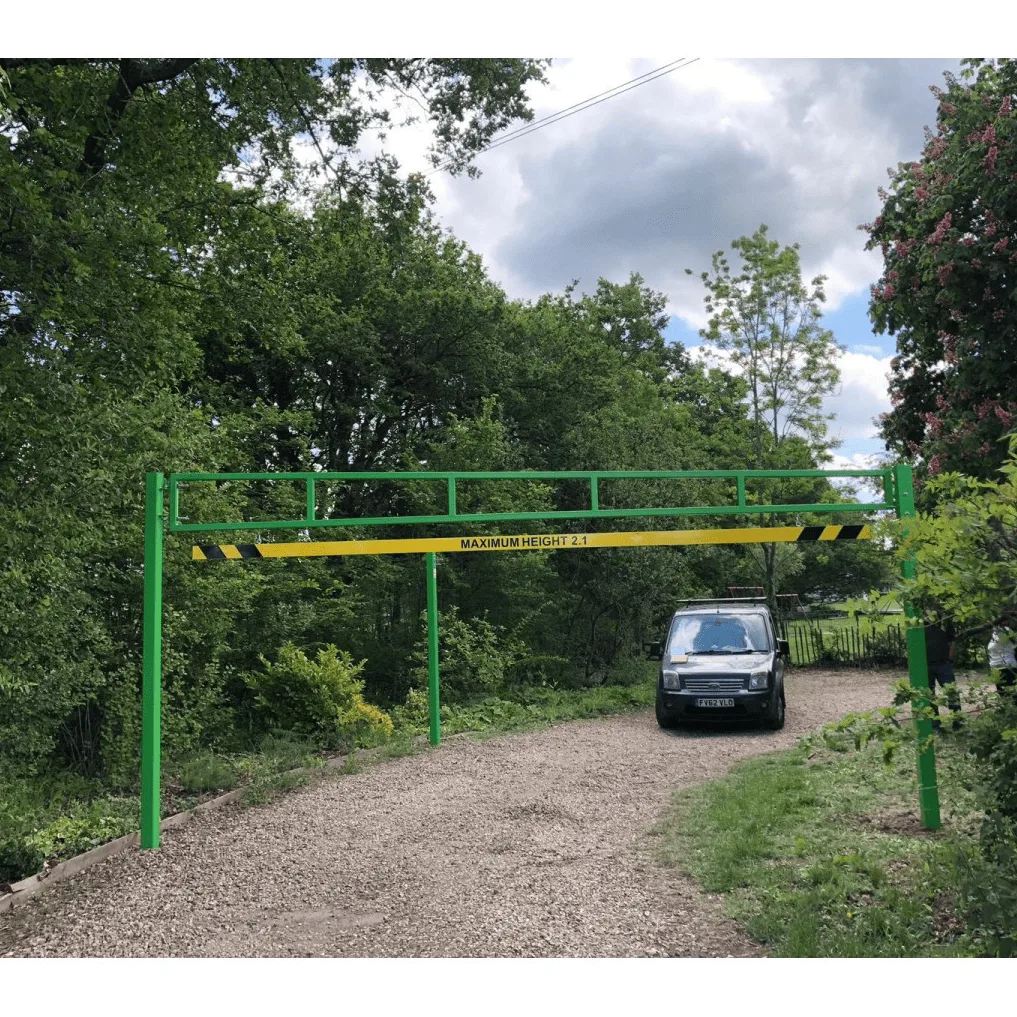

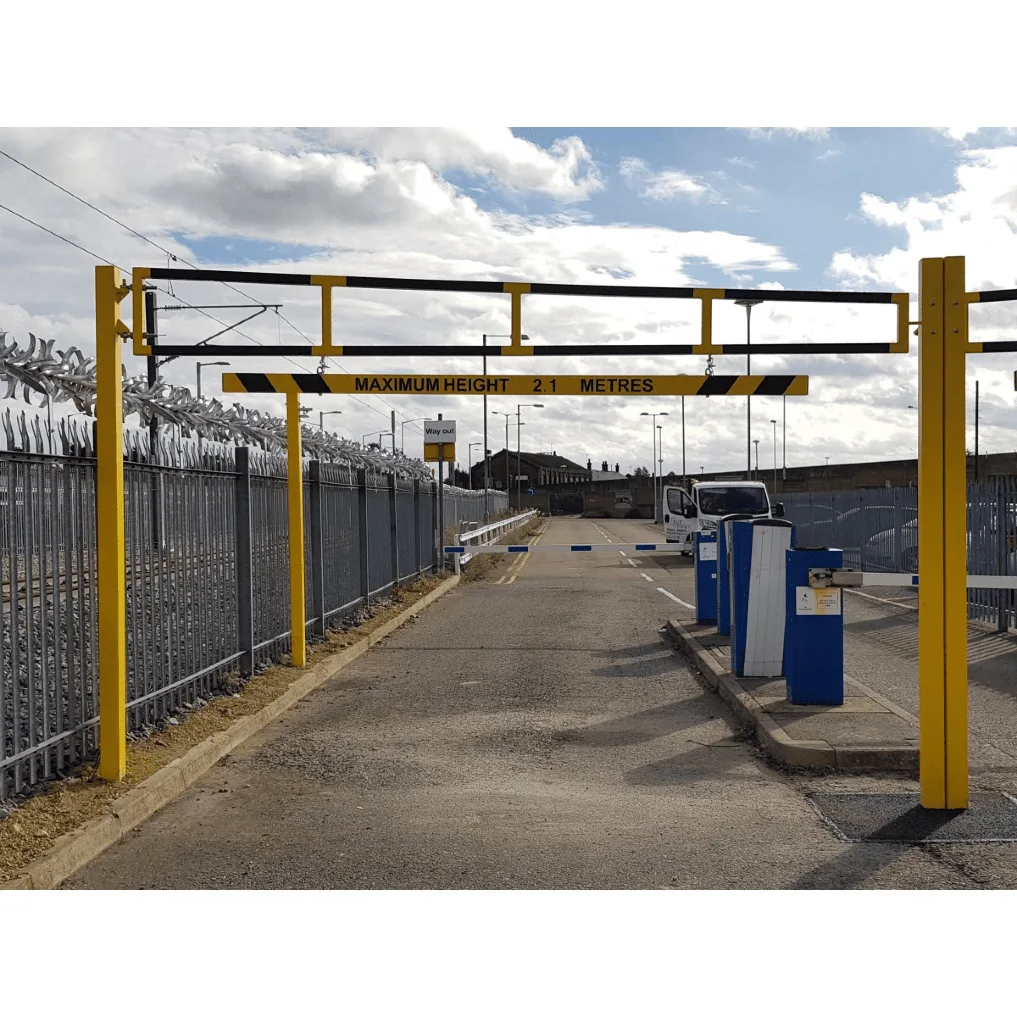

The SB.23H height barrier is a reliable solution for preventing access by taller vehicles to areas like car parks, entrances, and premises. With its robust, gated design, it delivers a heavy-duty appearance while allowing easy access for taller vehicles when needed.
Our single-leaf height barriers feature a heavy-duty, self-locking padlock facility, which keeps the gate securely closed without a padlock. For added security, a padlock can be applied to prevent the barrier from opening. If you choose the recommended latch-back post, it will be equipped with the same self-locking feature.
For enhanced padlock security, lock shrouds are available as an additional option. Crafted from heavy-duty steel, these shrouds are designed to deter tampering and prevent tools from cutting the padlock.
All our opening barriers are supplied with heavy-duty, galvanised adjustable eyebolts, enabling perfect alignment during installation.
Key Features
- Heavy-duty gated design
- Self-locking padlock facility included
- Galvanized adjustable eyebolts for precise alignment
- Optional lock shroud for added security
- Available in concrete-in or bolt-down options
- Galvanized and/or powder-coated finish
- 180° opening (dependent on hinge position)
- Optional Nudge Bar Warning Signage and Maximum Height Sign
Specifications
- Hinge Post: 100 x 100mm box section
- Latch & Latch Back Post: 100 x 100mm box section
- Height Barrier Gate: 50 x 50mm box section
- Concrete-In Depth: 760mm below ground
- Bolt-Down: 18mm diameter holes (fixings not supplied)
Delivery Times (Made to Order)
- Powder-Coated Only: 7-14 working days
- Galvanized Only: 7-14 working days
- Double Finish (Galvanized & Powder-Coated): 14-21 working days
Warranty Information
This product includes a 1-year standard warranty.
