S14HD LA (670) Anti-Ram Lift Assisted Telescopic Bollard - Insurance Approved
- Warranty 12 month for product and installation
- Lead Time 5 Working Days
Installation Available UK-wide
- Sold Secure
- Insurance Approved
- UK-wide Installation
Product Overview

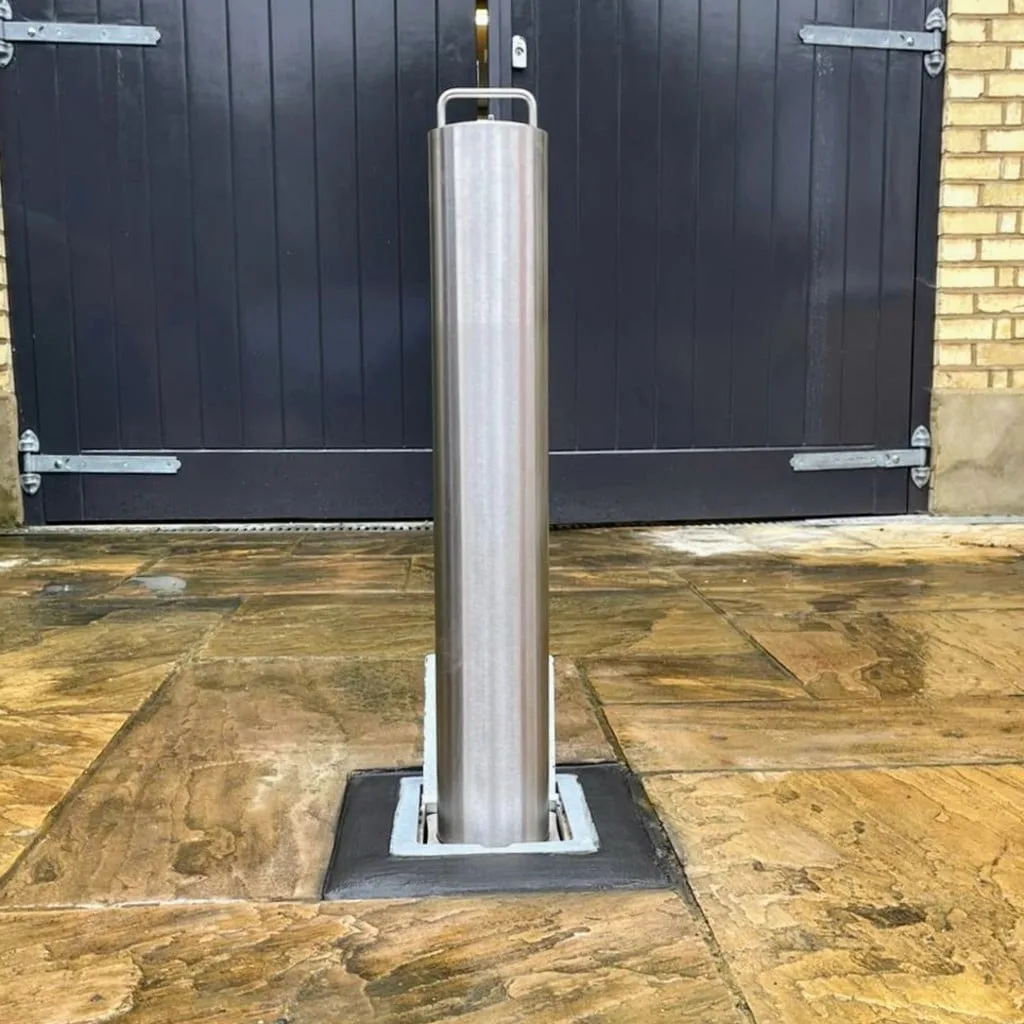

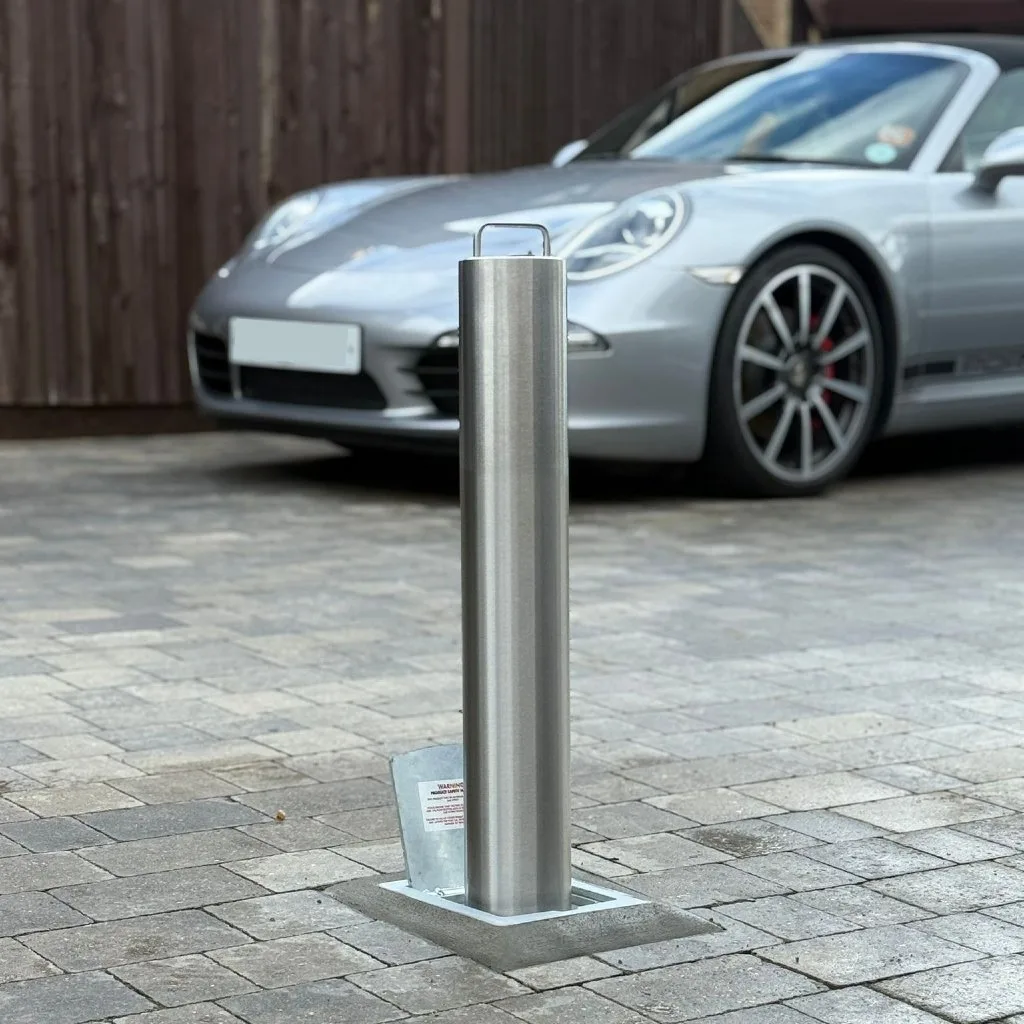

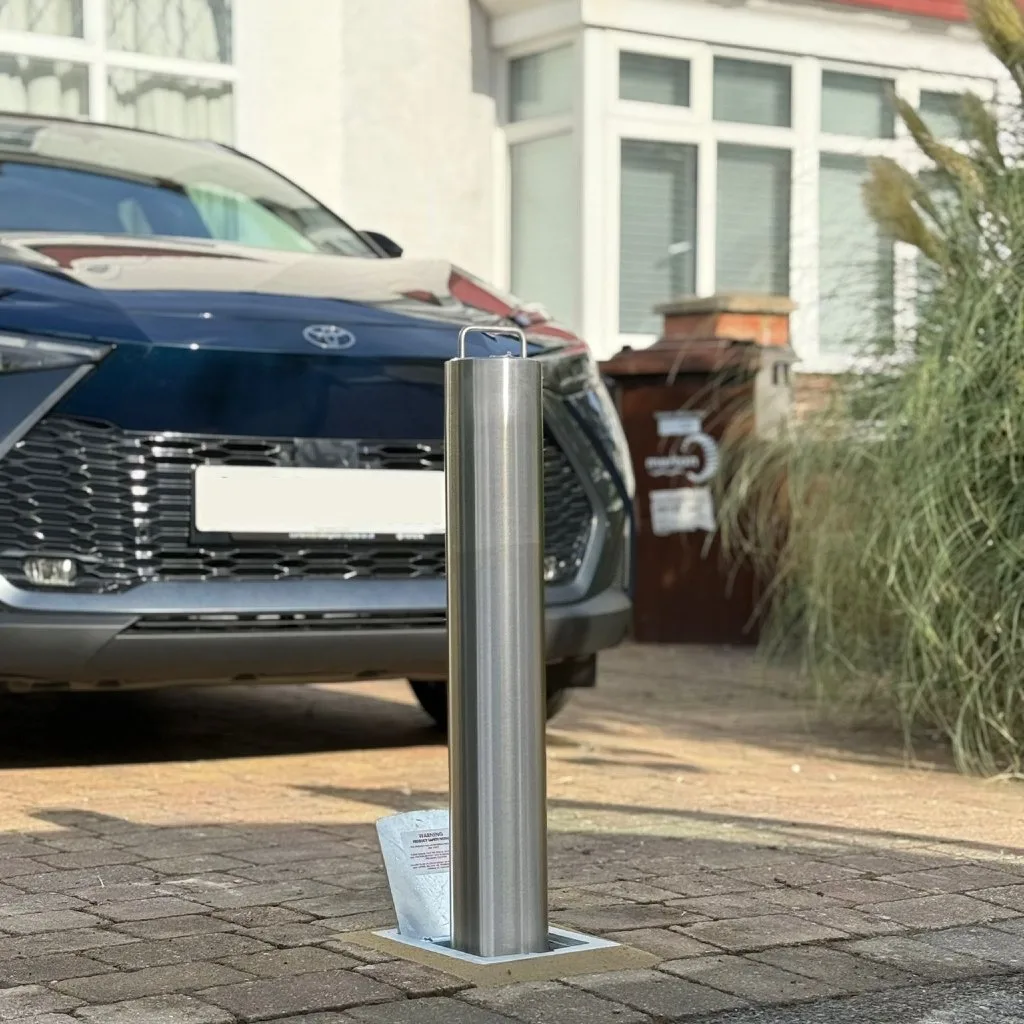

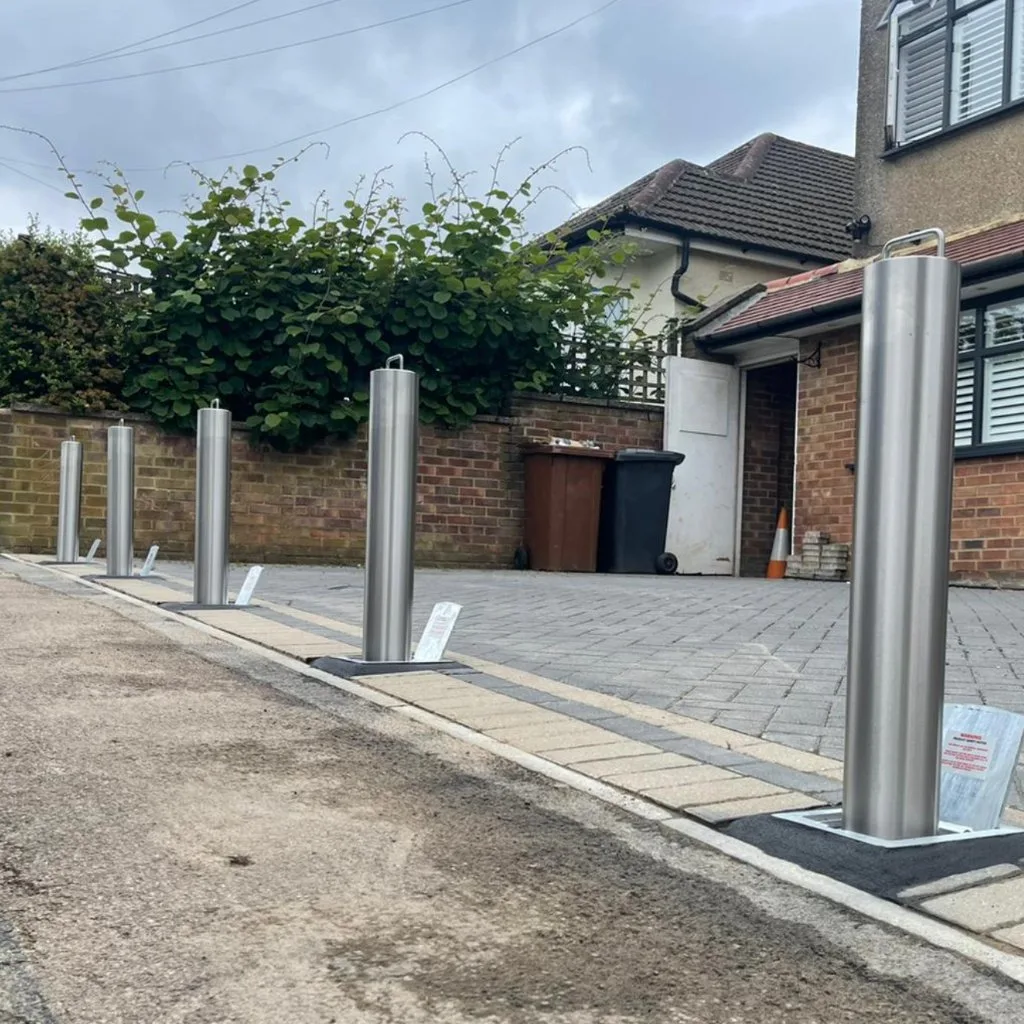

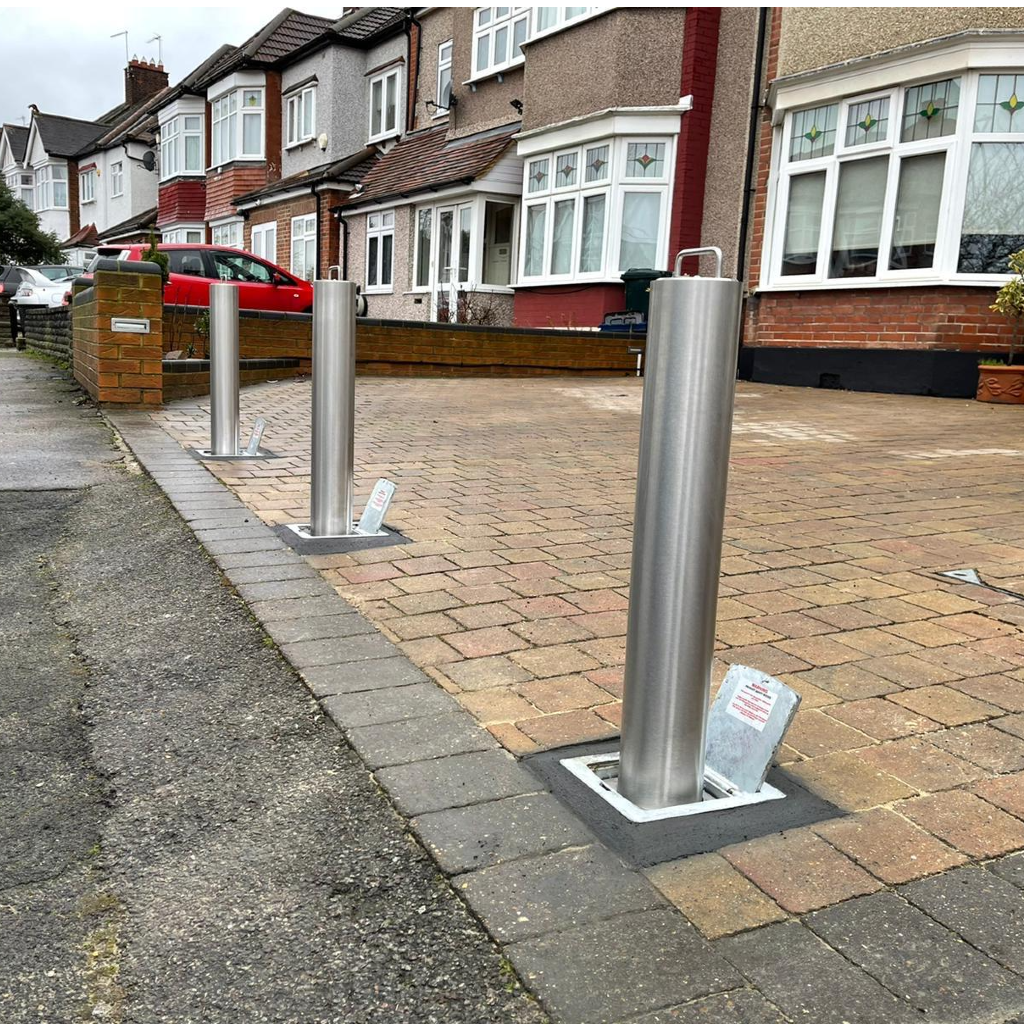

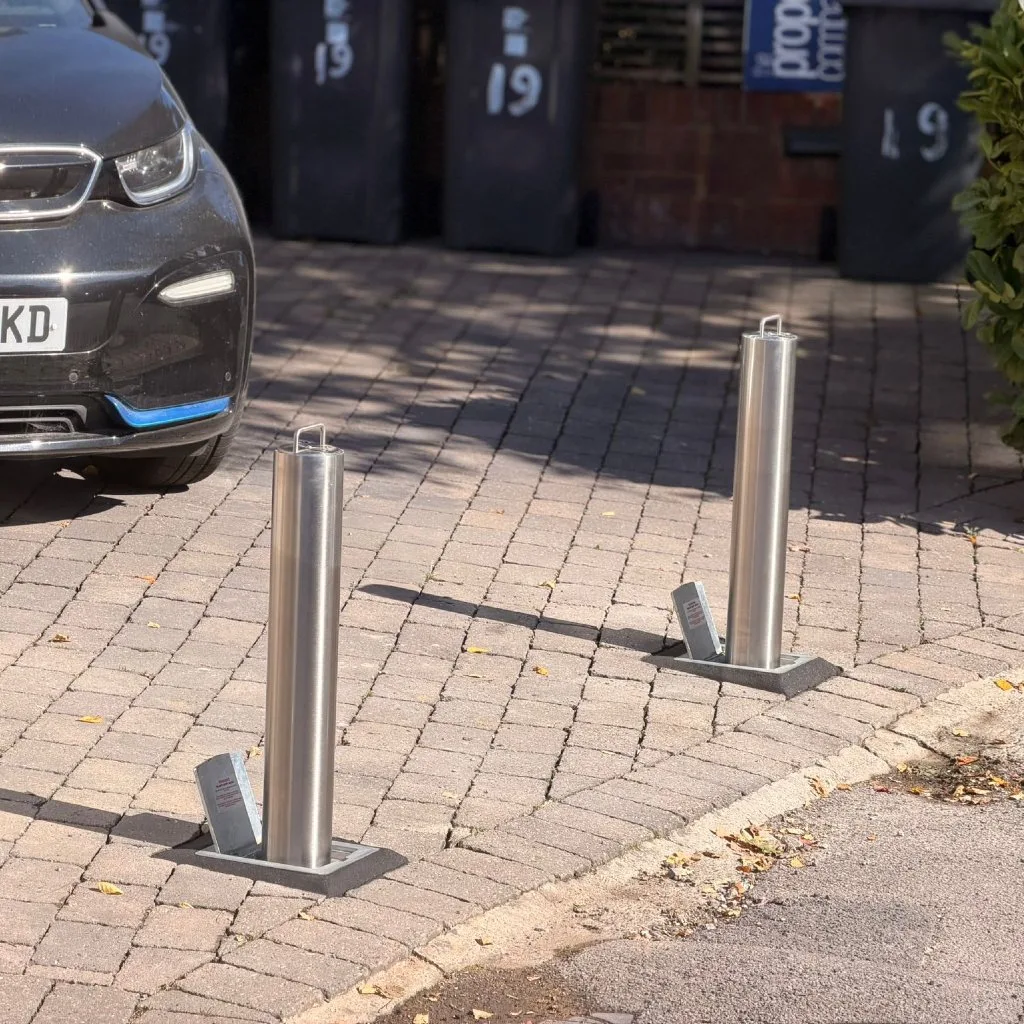

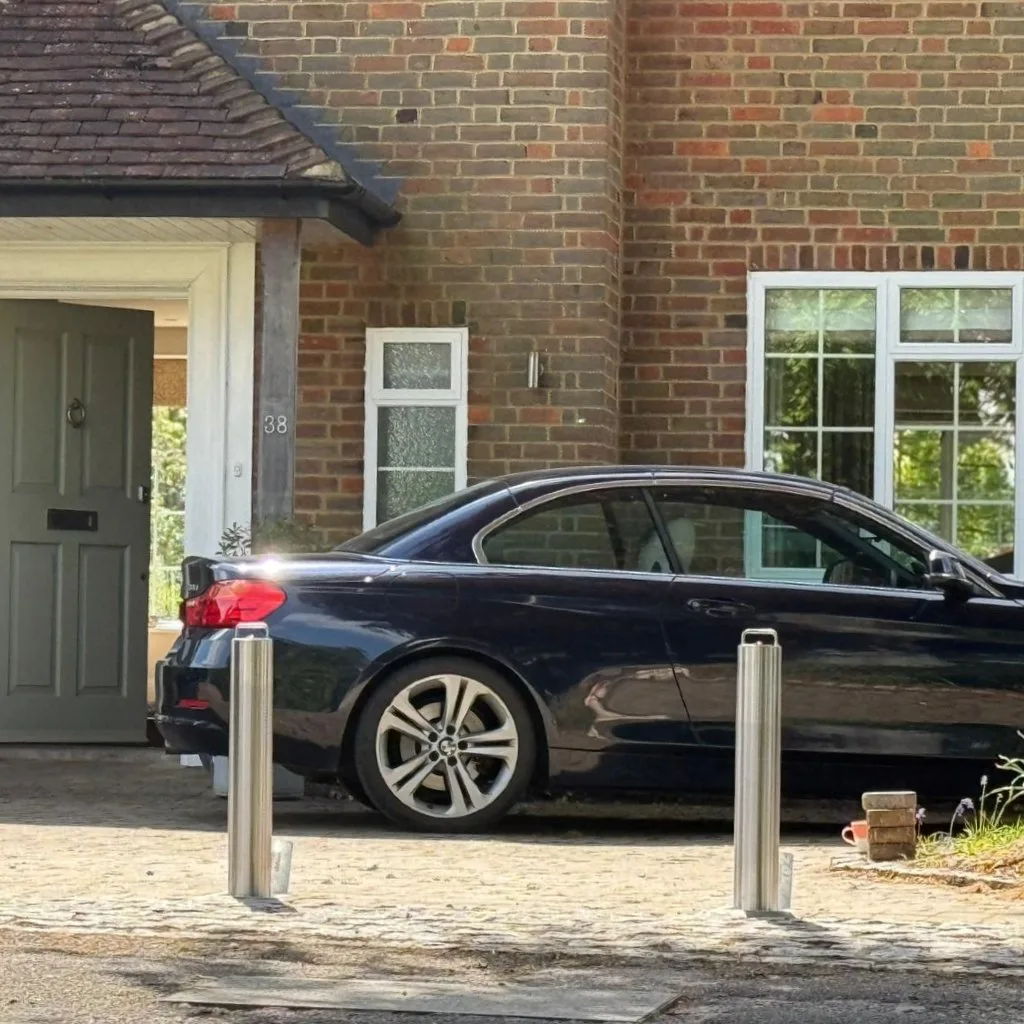

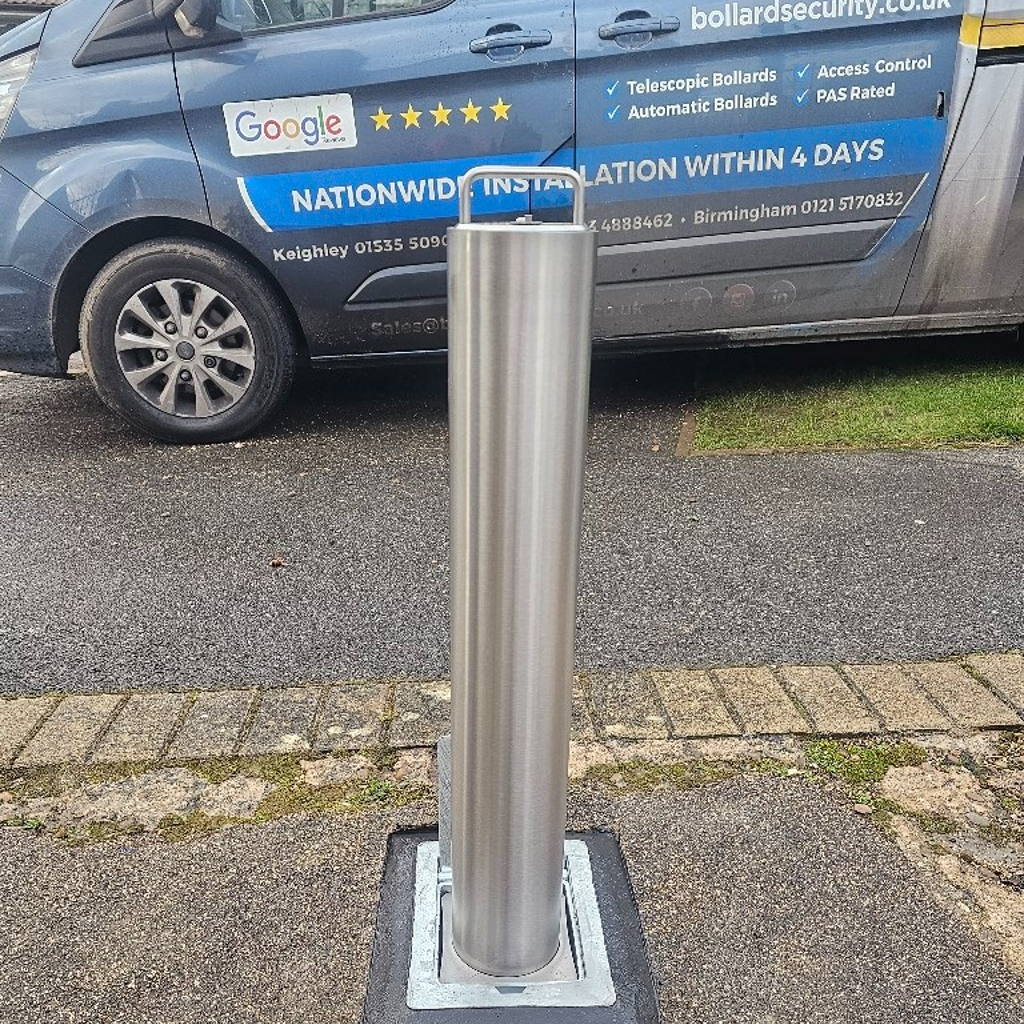

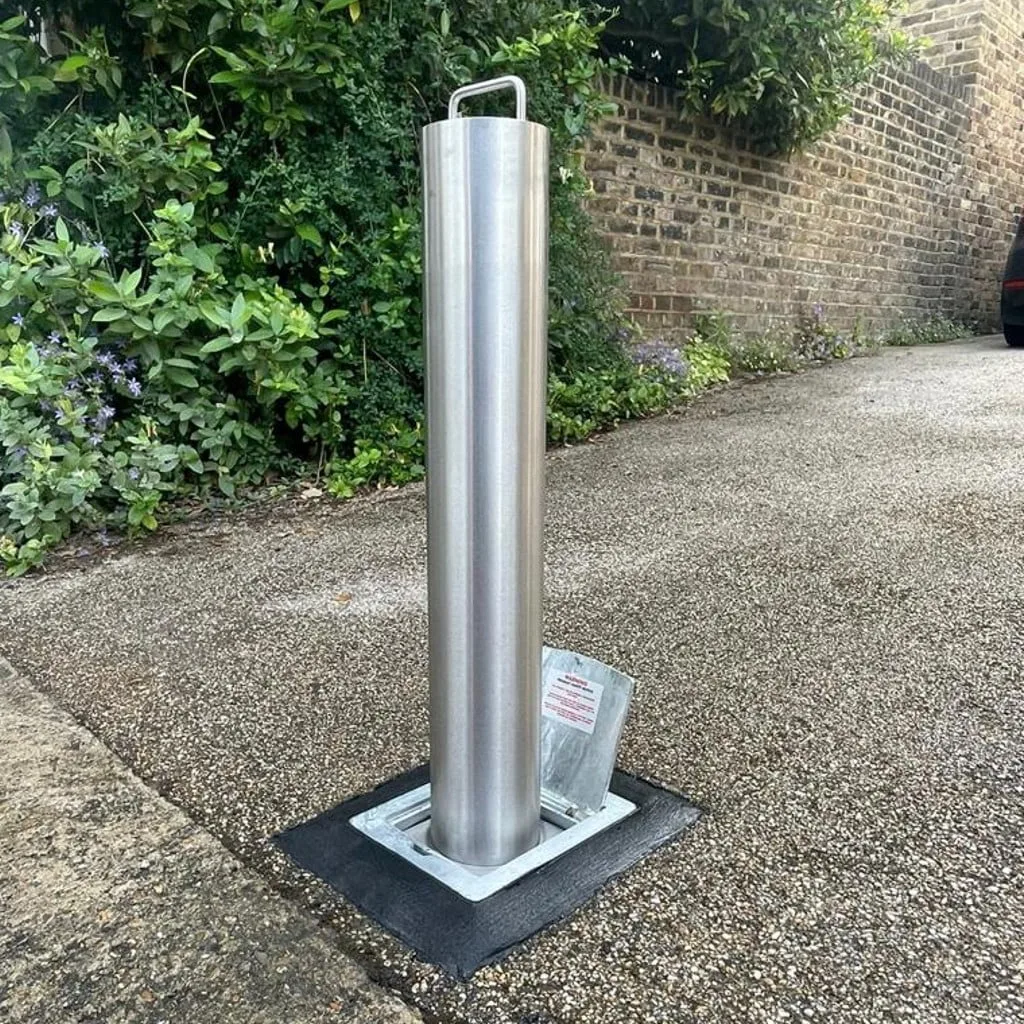

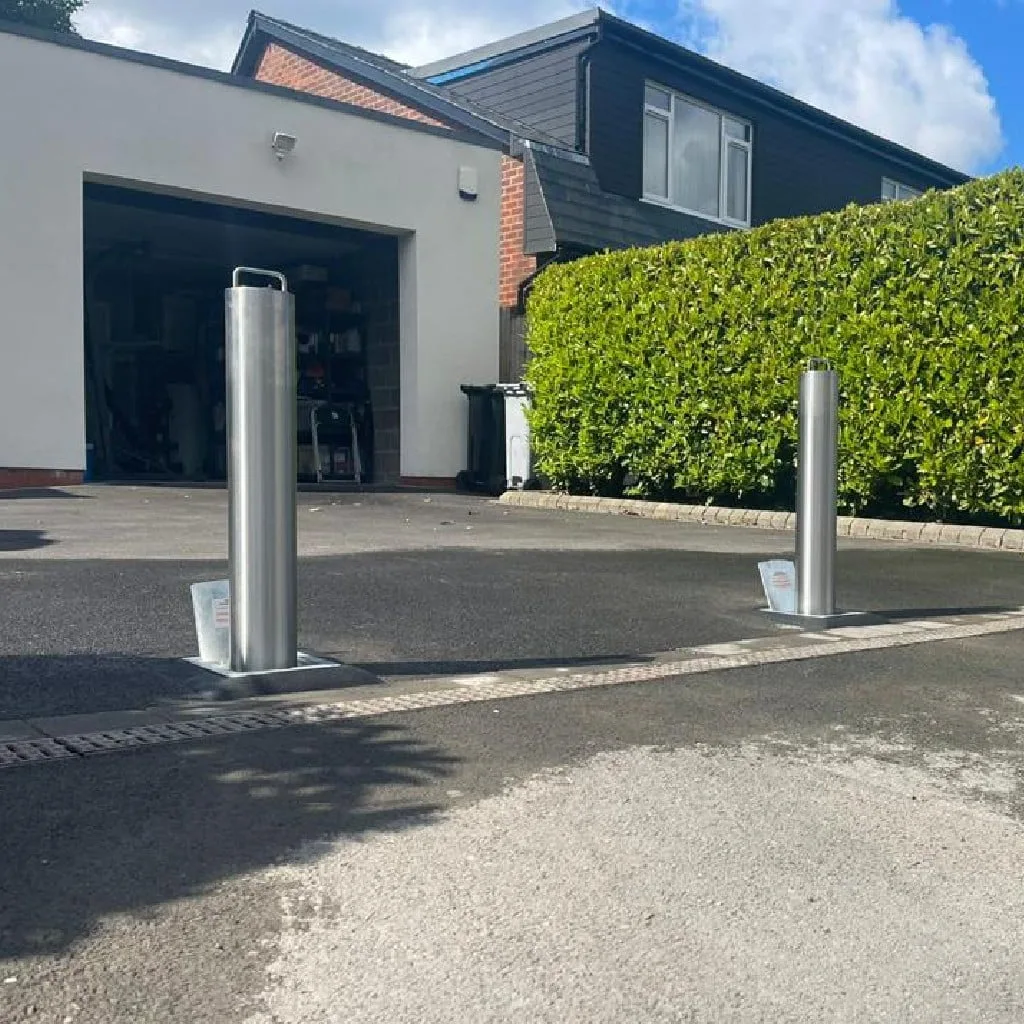

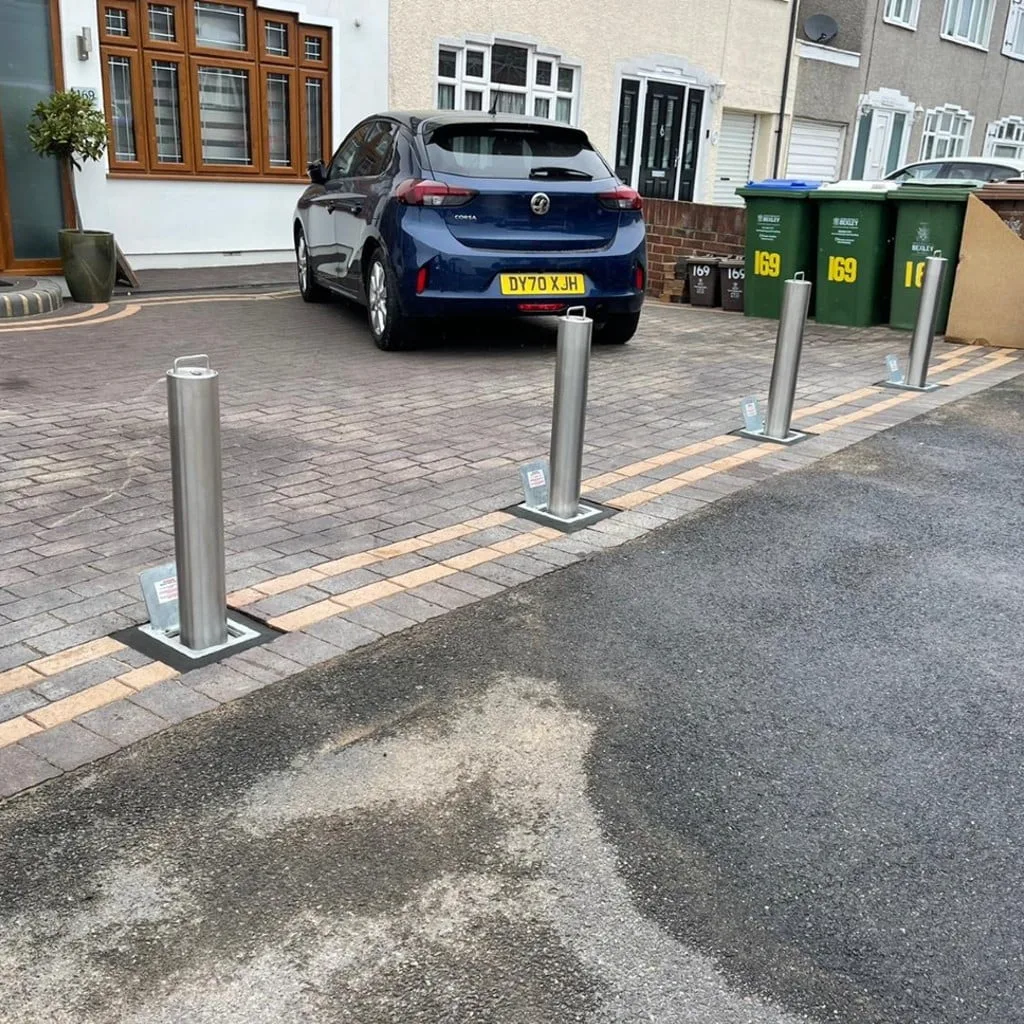

The S14 670 Heavy Duty lift assisted bollard is classed as an anti ram bollard and is an insurance company approved product. This model has a 114mm diameter, 670mm height and with the additional steel insert, a heavy duty 6 mm thick steel wall. It has the added benefit of an internal gas actuated ram which reduces 70% of the lifting weight. In most cases the bollard will fully raise from the closed position when unlocked at ground level offering a stylish and simple bollard to operate. The lift assisted mechanism is ideal for those who may struggle with lifting a standard manual telescopic bollard or simply require ease of use. Incorporating a 10 pin anti-drill and tamper-proof lock, it has been awarded the Sold Secure and Secure By Design accreditation. Made from grade 304 stainless steel with a brushed satin finish, the S14 LA looks stunning, is easy to operate and requires very little maintenance. The S14 LA is ideally suited to all residential applications where the client requires a high level of security including protection of large vehicles and motor homes. It is also suitable for commercial use, such as installed in front of roller shutter doors to act as an excellent addition to your buildings perimeter security.
- Diameter: 114 mm
- Height: 670 mm above ground
- Bollard wall thickness: 6 mm
[Pictured above – TV presenter and actress Denise Van Outen, just one of our 1000’s of happy customers] *This video features the larger S14 850 Lift Assist variant
Ideal Applications
Commonly installed across commercial, residential and public-sector sites.
-

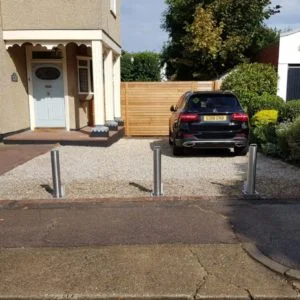

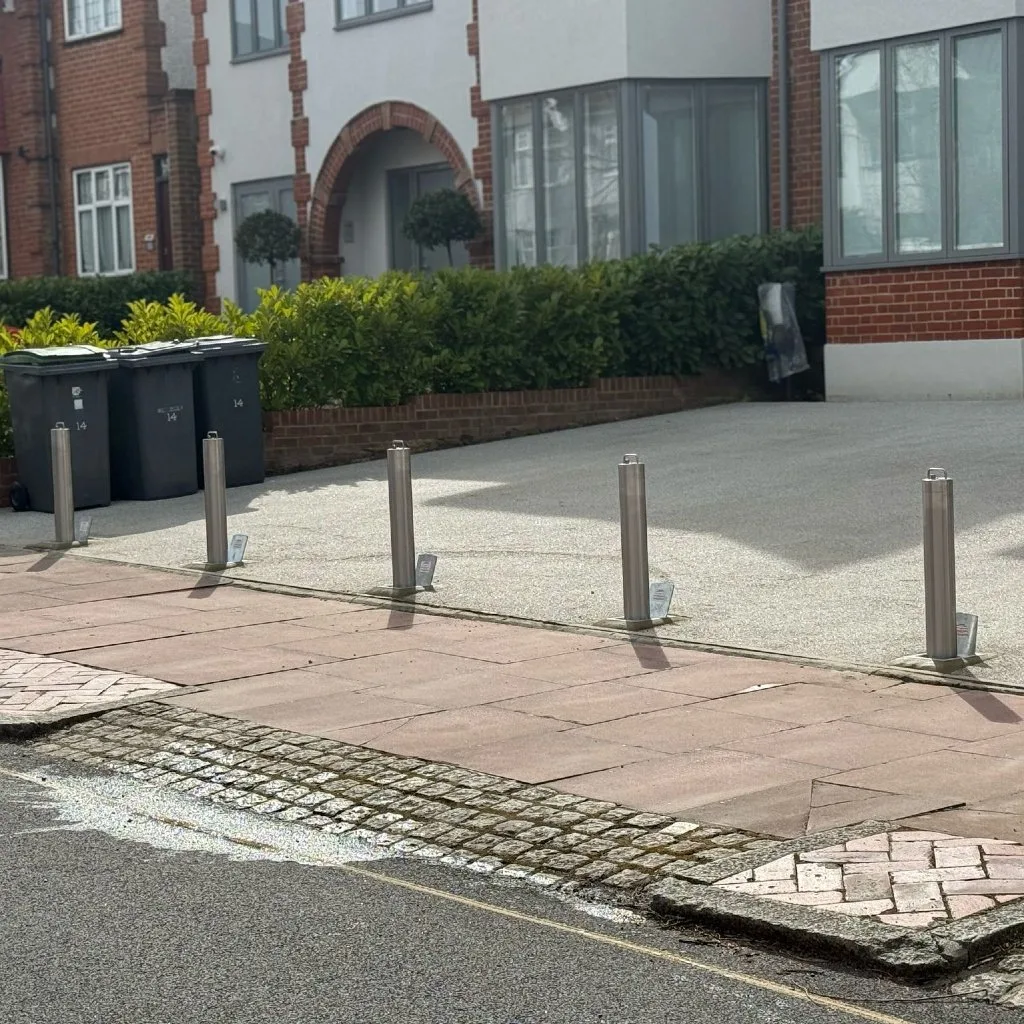

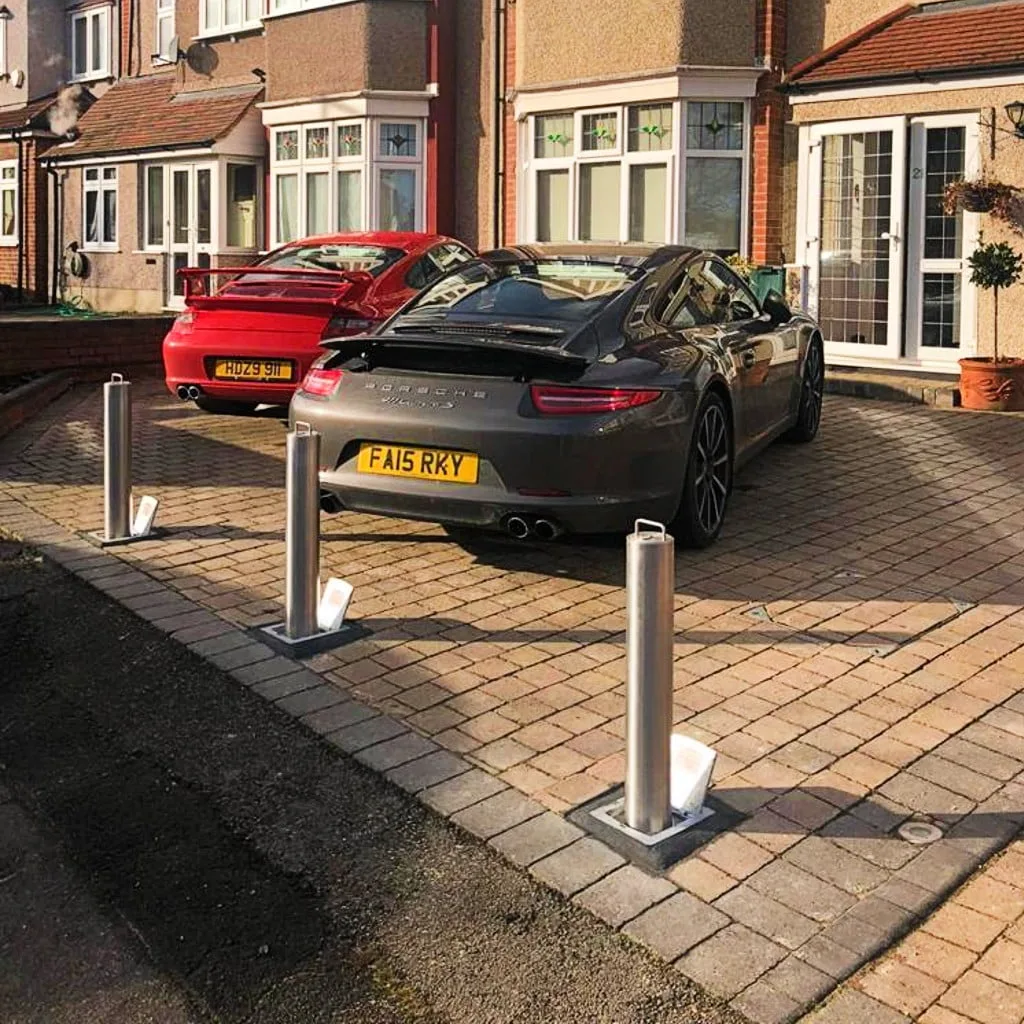

Residential Driveways
-
Commercial Buildings
-
Schools
-
Business Parks
-
Warehouses
-
Retail Parks
-
Private Estates
Why Choose This Product?
Practical advantages that matter on real sites.
-
Heavy-duty construction
Built with reinforced steel for long-term outdoor performance.
-
Low maintenance
Designed to minimise service intervals and ongoing costs.
-
Reliable daily operation
Tested for thousands of cycles in high-traffic environments.
-
Suitable for high-traffic locations
Trusted in car parks, retail parks and commercial estates.
-
Professional UK installation available
Nationwide fitting by our accredited engineers.
Our Installation Process
A clear, structured journey from first contact to fully operational site.
-
1
Request Quote
Tell us about your site and we will prepare a tailored quotation.
-
2
Technical Consultation
Our team reviews specifications, regulations and traffic patterns.
-
3
Site Survey
An engineer visits to confirm ground conditions and layout.
-
4
Professional Installation
Accredited installers complete the work to manufacturer standards.
-
5
Testing & Handover
Full operational test, signage check and on-site training.
Technical Specifications
Key performance and build details for this model.
| Application | Suitable for residential and commercial applications |
|---|---|
| Heavy Duty Classification | Additonal steel insert which increases the bollards impact resistance and strength |
| Bollard Material | Grade 304 stainless steel |
| Bollard Wall Thickness | 6mm |
| Height (above ground) | 670mm |
| Diameter | 114mm |
| Pull Up Weight | 4 kg |
| Lift Assist | Internal gas actuated ram reduces lifting weight by 70% |
| Finish | Brushed Satin Stainless Steel |

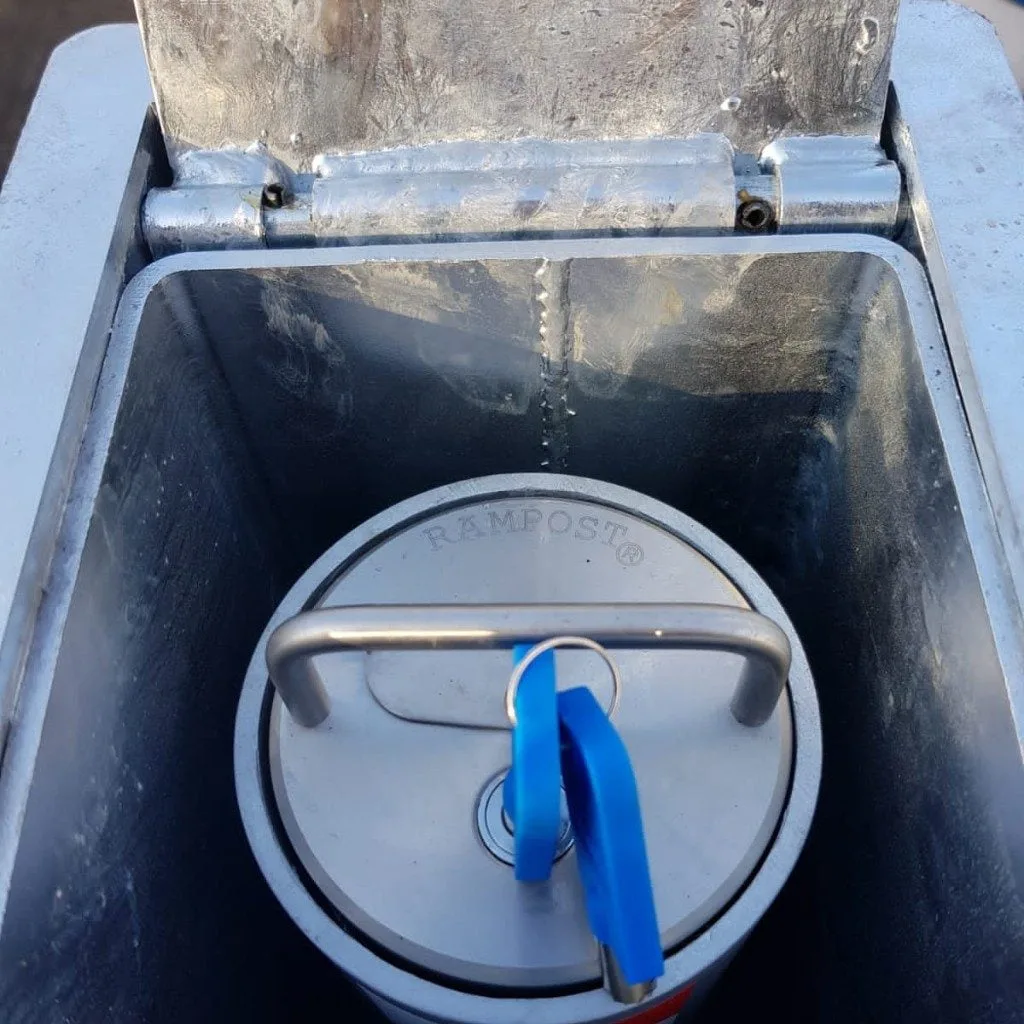

| Lock | High-security "Sold Secure" 10-pin integrated push button, top lock with sliding cover plate |
| Lock - Security | The lock is drill, pick and tamper proof. The keys can't be copied. |
| Keys | Supplied with 2 coded keys (additional keys are available) |
| Accreditation | Accredited to the 'Secured by Design' Police initiative and 'Sold Secure' |
| Anti Ram Raid Classification | Yes |
| Ground Cover Plate | Heavy-duty steel hinged cover plate |
| Handle | Stainless steel handle on top of bollard |
| Manufacturing Standards | BS1440 and BS EN ISO 1461 (2009) |
| Warranty | 12 month for product and installation |
| Maintenance | Low maintenance. Please contact us for more information. |
Compare Similar Bollards
Side-by-side comparison of similar products in the same category.
| Image | Model | Height | Diameter | Type | Best Application | Warranty | Installation |
|---|---|---|---|---|---|---|---|
|

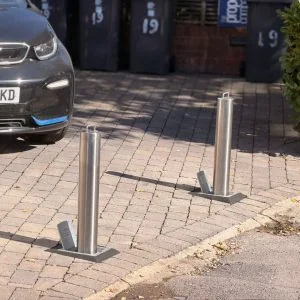

S14HD LA (670) Anti-Ram Lift Assisted Telescopic Bollard – Insurance Approved Current model | 670mm | 114mm | Suitable for residential and commercial applications | 12 month for product and installation | Supply & Installation available | |
|

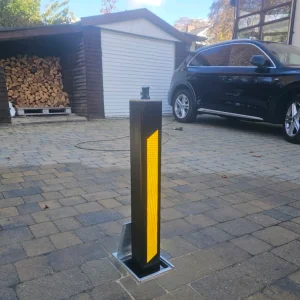

90 Square HD Lift Assisted Telescopic Bollard (Black) (670mm) – Insurance Approved | 670mm | 90mm | Suitable for residential and commercial applications | 12 month for product and installation | Supply & Installation available | |
|
R14 LA (670) Lift Assisted Telescopic Bollard (670mm) | 670mm | 114mm | Suitable for residential and commercial applications | 12 month for product and installation | Supply & Installation available | |
|
114 670 Lift Assisted Telescopic Bollard (Black) (670mm) – Insurance Approved | 670mm | 114mm | Suitable for residential and commercial applications | 12 month for product and installation | Supply & Installation available |
Frequently Asked Questions
Common buying questions answered up front.
-
Most bollard installations are completed within one working day once the site has been surveyed and prepared.
-
We recommend a scheduled service visit every 12 months to keep your bollard operating reliably and to validate the warranty.
-
All our bollards come with a manufacturer-backed warranty. See the product Downloads section for the full document.
-
Stocked models typically install within 5 working days. Bespoke orders depend on specification and are quoted per project.
-
Our team can confirm compatibility with your site and any existing access control. Contact us with your current setup and we will advise.
-
Bollards are commonly installed on driveways, commercial entrances, car parks, retail parks, schools and private estates.
