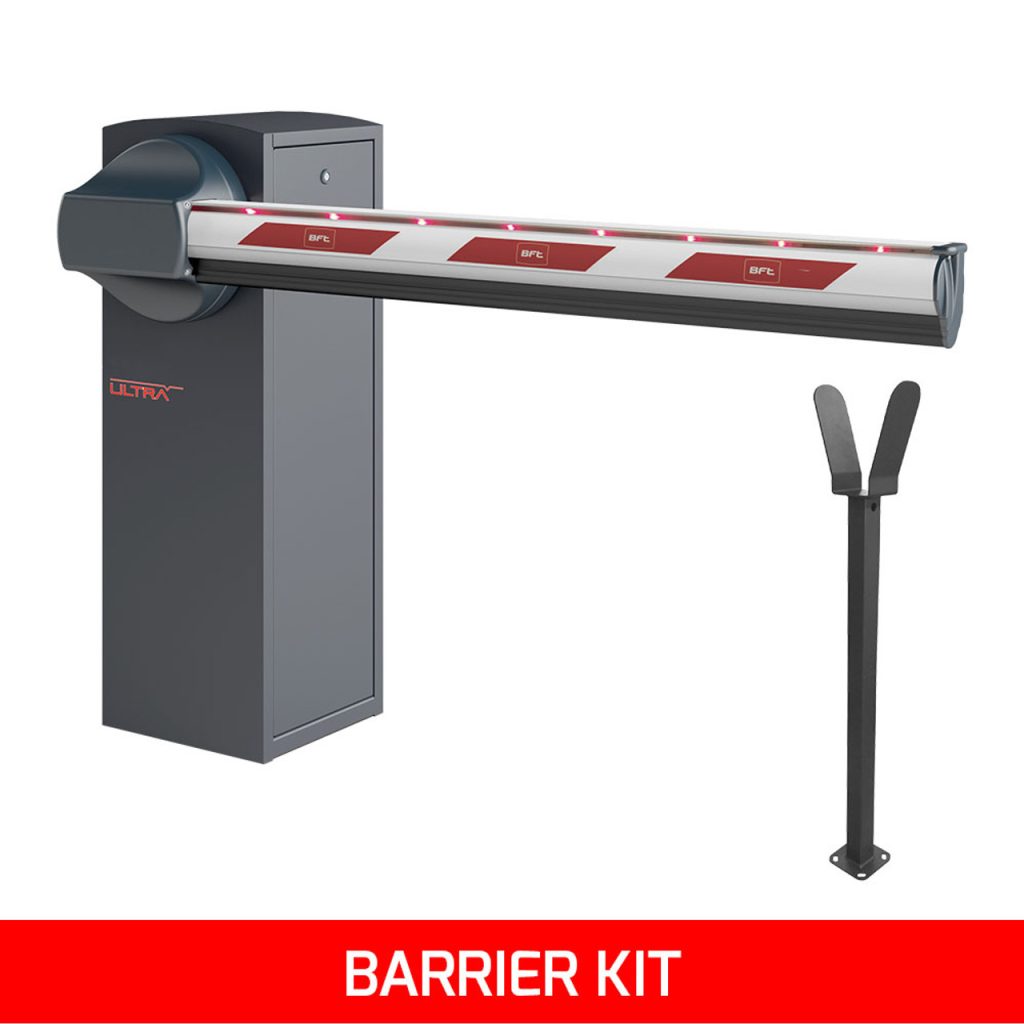

MAXIMA ULTRA 68 XL - 8m Kit
£4,198.49
The Maxima Ultra 68 automatic barrier, available as an 8m kit, is a multi-purpose heavy system suitable for car parks, industrial sites, tolls and many other large scale secure sites. With a drive-through gap of between 4 to 8 metres,…
This product is already in your quote.
Product Description

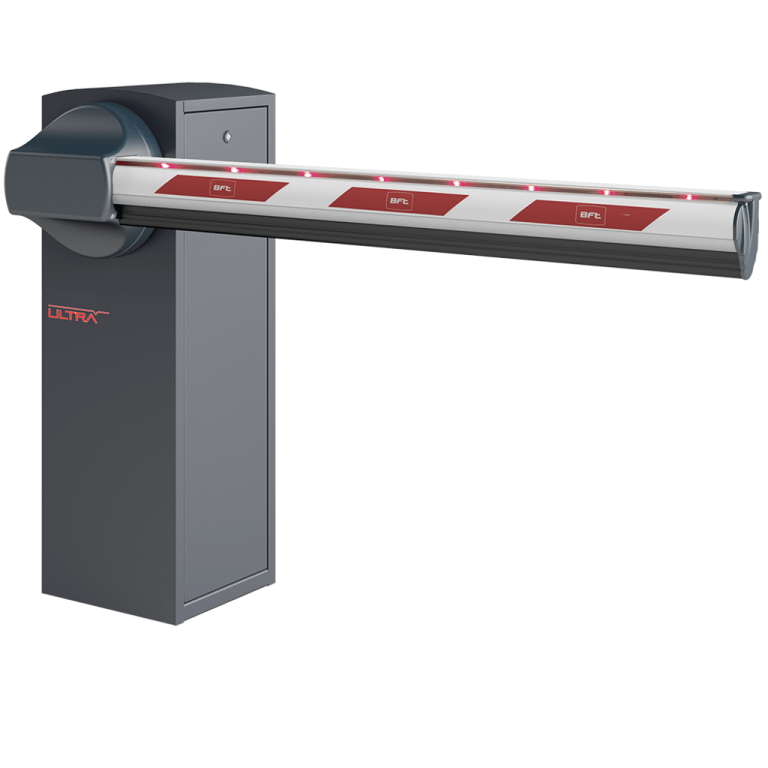

The Maxima Ultra 68 automatic barrier, available as an 8m kit, is a multi-purpose heavy system suitable for car parks, industrial sites, tolls and many other large scale secure sites. With a drive-through gap of between 4 to 8 metres, the Maxima Ultra is an adaptable yet robust electromechanical barrier system. It is capable of operating in adverse weather and temperature environments.
The entire barrier system is also compatible with BFT’s U-LINK system, allowing you to link all the automation products into a single PC-based control platform. The Maxima Ultra 68 is powered by the BFT CSB-Xtreme, a control panel dedicated to serving three-phase motor-powered barriers.
Hard-Wearing
- Capable of 30,000 cycles per day
- Robust metal outer casing
- Handles temperature extremes from -30 to +60 degrees
- IP54 level protection
Secure
- Single crank machine mechanism
- Mechanical locking system

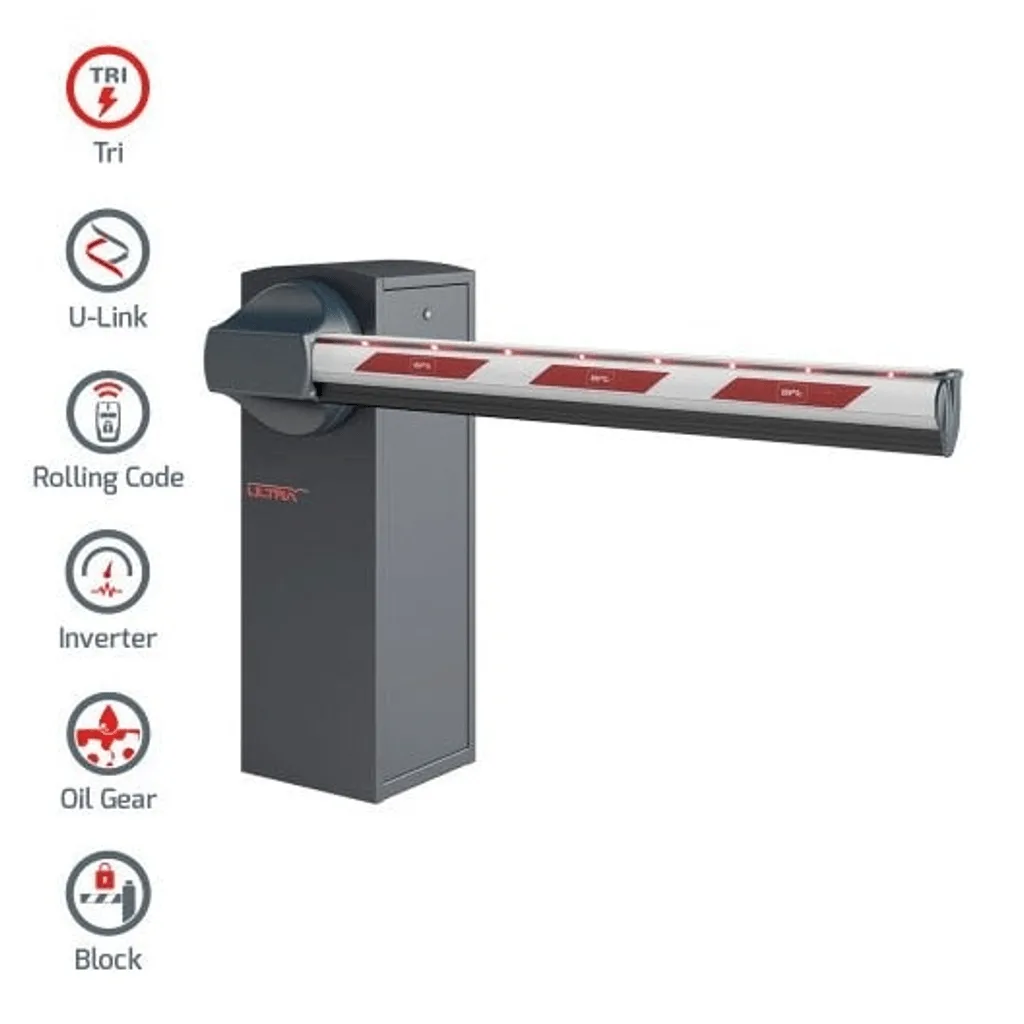

Intelligent
- Impact reaction for opening and closing
- U-link compatible
- Integrated heater for low temperatures
Specification
Useful Passage |
4 – 6m
|
Frequency of Use |
30000 ops per day
|
Control Unit |
CSB Xtreme
|
Motor Type |
Three phase induction
|
Gear Unit Type |
In Oil Bath
|
MCBF (Mean cycles between failure) |
2,000,000 Ops
|
Motor Power Supply |
230v
|
Opening or Closing |
4.5 – 6 sec
|
Slowdown |
In opening and closing
|
Lock |
Mechanical
|
Release |
Inside The Structure
|
Ambient conditions |
From -40°C to 60°C
|
Protection Rating |
IP54
|
