XPASS 330/1200SS K12 (crash rated) – Hydraulic Bollard
£18,780.00 - £20,076.00

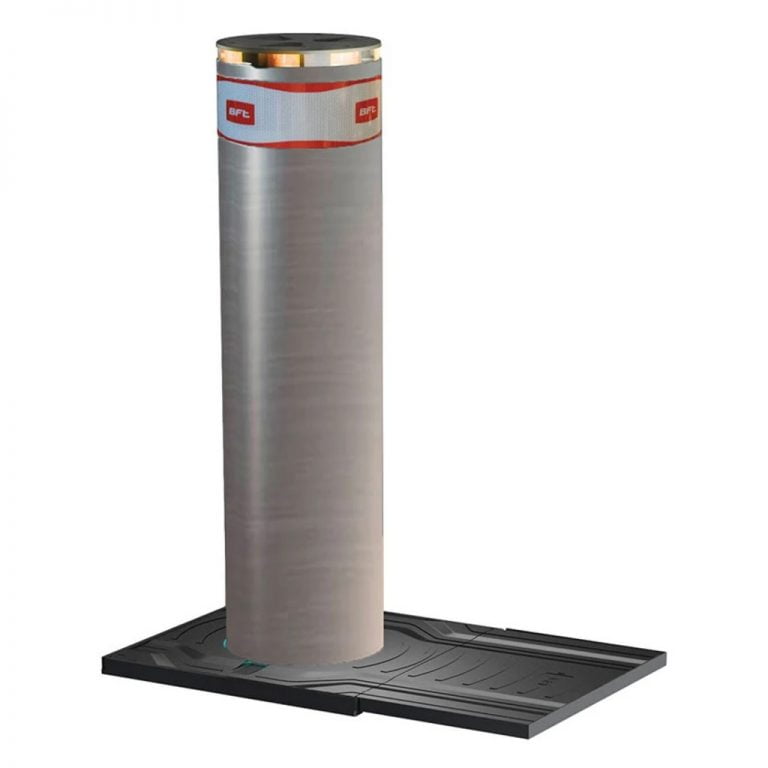

The X-Pass 1200SS K12 is a stainless steel version of the standard 1200 K12 creating a contemporary design that is suited to any modern application. The bollard is crash test certified to withstand an attempted ram raid or terrorist attack from a 7,200kg vehicle travelling at 80 kph. Anti-terrorism bollards are tested and certified (crash-tested) by an independent body according to standards PAS 68 and IWA14-1 (equivalent to American standard “K12”). Each bollard has an independent pump so that in the event of a control unit failure, the other bollards in the environment remain functional.
An emergency fast operation is also available. This decreases the rising time from 5.3 seconds to 1.5 seconds which is an ideal solution for extremely sensitive areas where a rapid response needs to be deployed quickly.
Operated by a key fob, from your smartphone, keypad or via an intercom, there will be an option that is suitable for your needs.
All the automatic bollards come complete as standard with a Perseo CBD dedicated control panel which manages up to 4 bollards in parallel and comes with a programming menu on the display, an integrated heating element and two key fob transmitters to operate the bollard.
If you would like any more advice on the various options and installation please contact us on 01535 50900

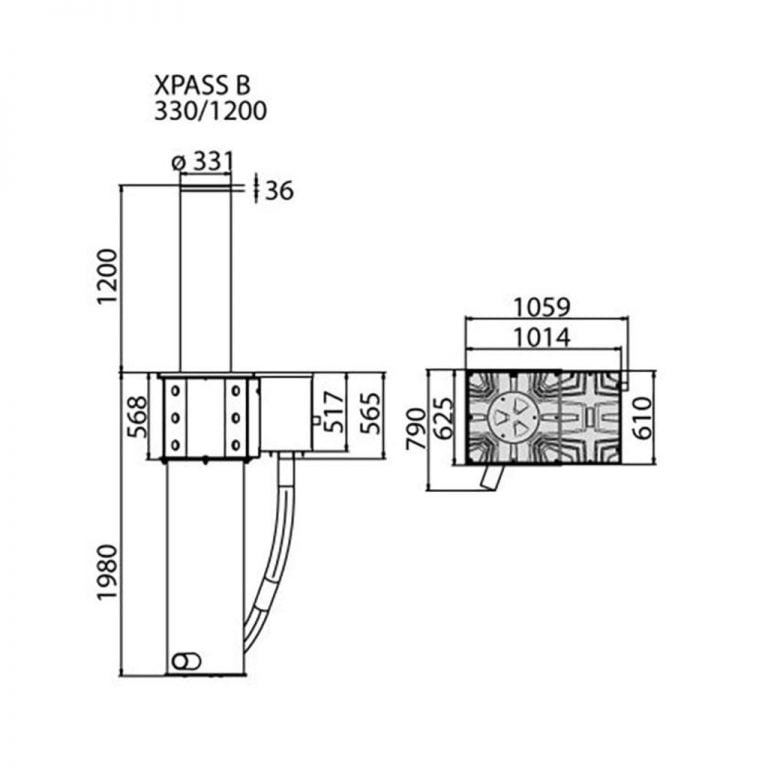

- Diameter: 330mm
- Height: 1200mm above ground
- Bollard wall thickness: 10mm
- PAS 68 crash rated – K12
|Height (above ground)||
|Bollard Wall Thickness||
Perseo CBD, Perseo CBE
|Transmitter/Key Fob (operates bollard)||
Mitto RCB 02 Key Fob included x 2
Suitable for commercial applications
|Emergency Fast Operation||
Reduces rising time to 1.5 seconds
|Acoustic Warning Signal||
Included (can be deactivated if required)
PAS 68 and IWA14-1 (equivalent to American "K12")
Brushed Satin Stainless Steel
Grade 316 stainless steel
|LED Light Crown||
LED light crown around top of bollard
|Frequency of Use||
Up to 2000 operations per day
BS1440 and BS EN ISO 1461 (2009)
12 month for product and installation
