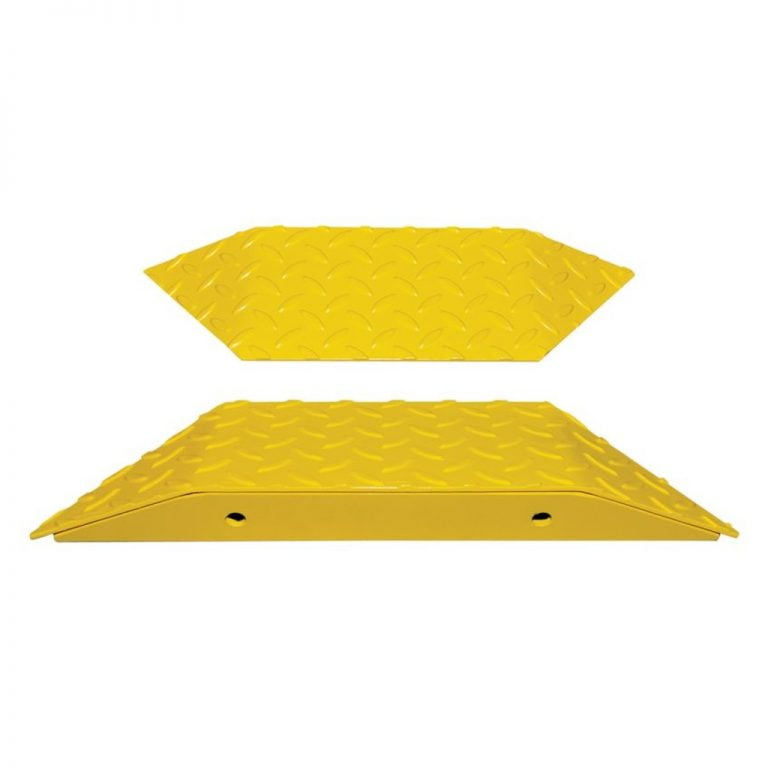

FP-04 HGV Traffic Control Plate


This FP-04 is a modular product and is available as a separate midsection with optional separate end caps to form either a straight continuous line or individual islands with end caps either side. Please see PDF Layout download for more information.

The springless directional ramp operates with a strong magnet, meaning that no spring replacement is required and the product is virtually maintenance free. With the use of magnets, the product is extremely quiet making it ideal for use in or near residential areas. Should the teeth become worn over time, spare replacement cartridges are available and are quick and easy to replace.

Highly visible with their high-density polyethylene teeth with built-in reflective studs provide the visual deterrent required to prevent traffic from travelling in the wrong direction.

Each unit is bolted down by use of a tarmac fixing or concrete fixing dependant on the surface. For more information on fitting please see our product installation download.

The FP-04 can be used with the optional lockdown bar which is placed over the teeth and bolted in place.

* Free fixings supplied are M12 x 100 concrete through bolt.


Additional information


High Traffic Areas


Cars & HGV's


508mm x 306mm x 105mm

Unit Weight

23 kg

Flow Plate Material

Heavy Gauge Steel


Powder Coated


In-built counter balance & heavy duty spring


Surface Mounted – Concrete Fixings Included


Recommended every 12 month
