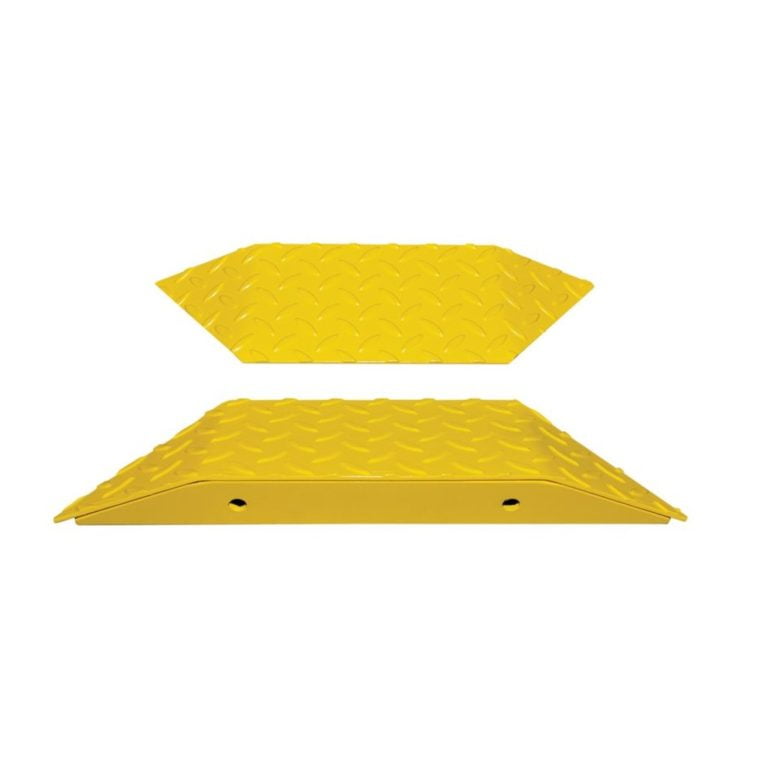

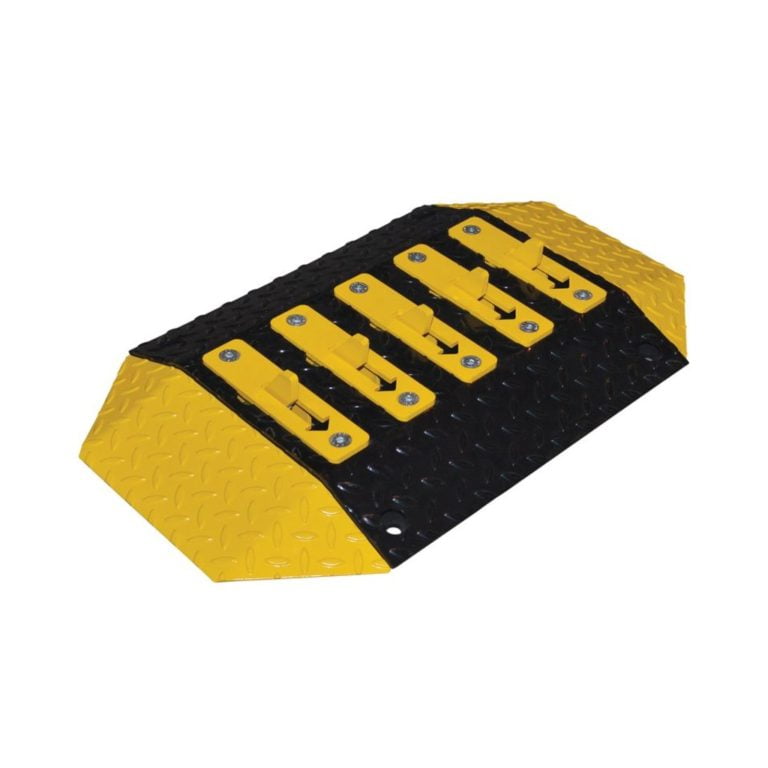

Each 500mm wide mid section can be adjoined to form a continuous length of ramp as required. The end caps are supplied separately and can be bolted on to the ramp to form end caps. Using this modular, it enables the client to form a ramp into various styles such as a continuous ramp with an end section on either side or alternatively it can be made into individual ramps with end plates on each side (islands).

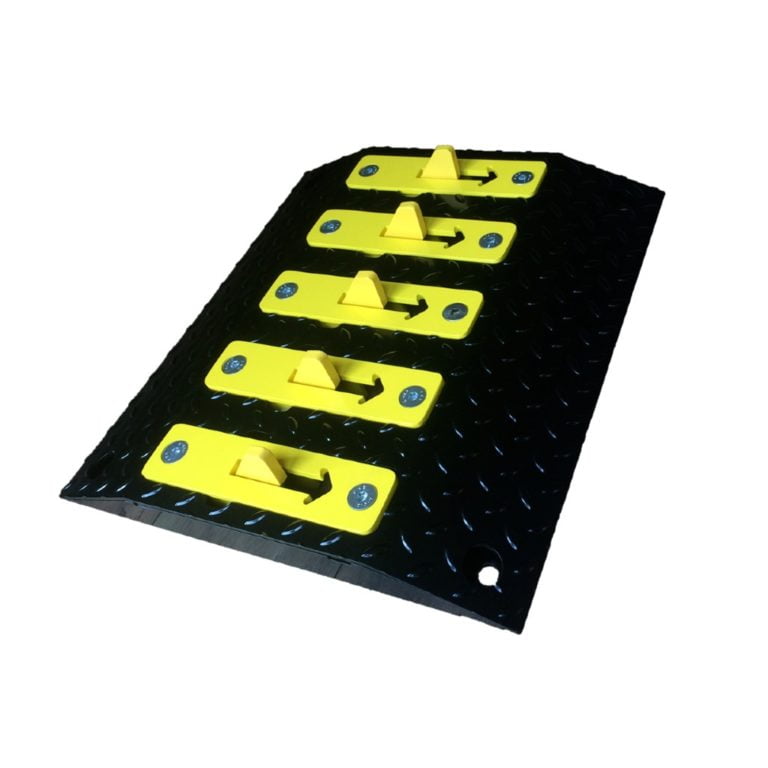

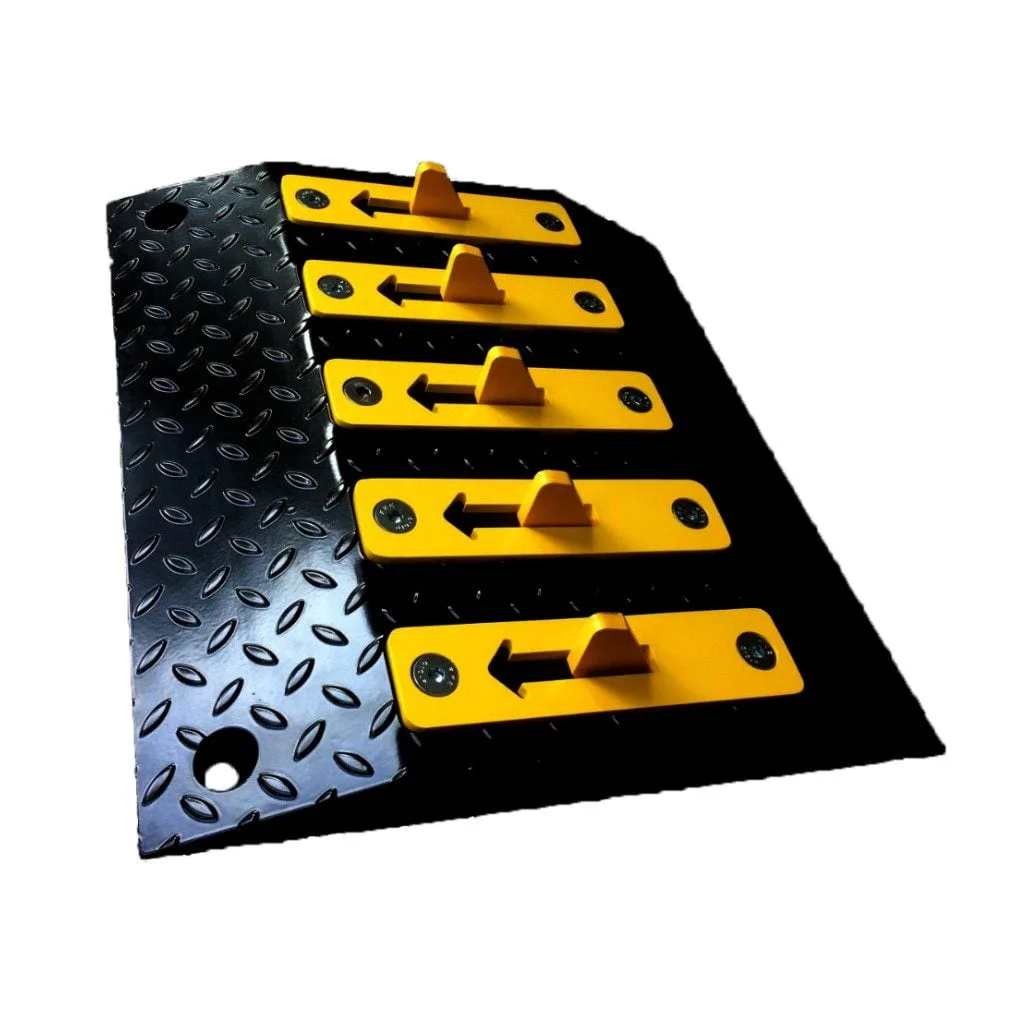

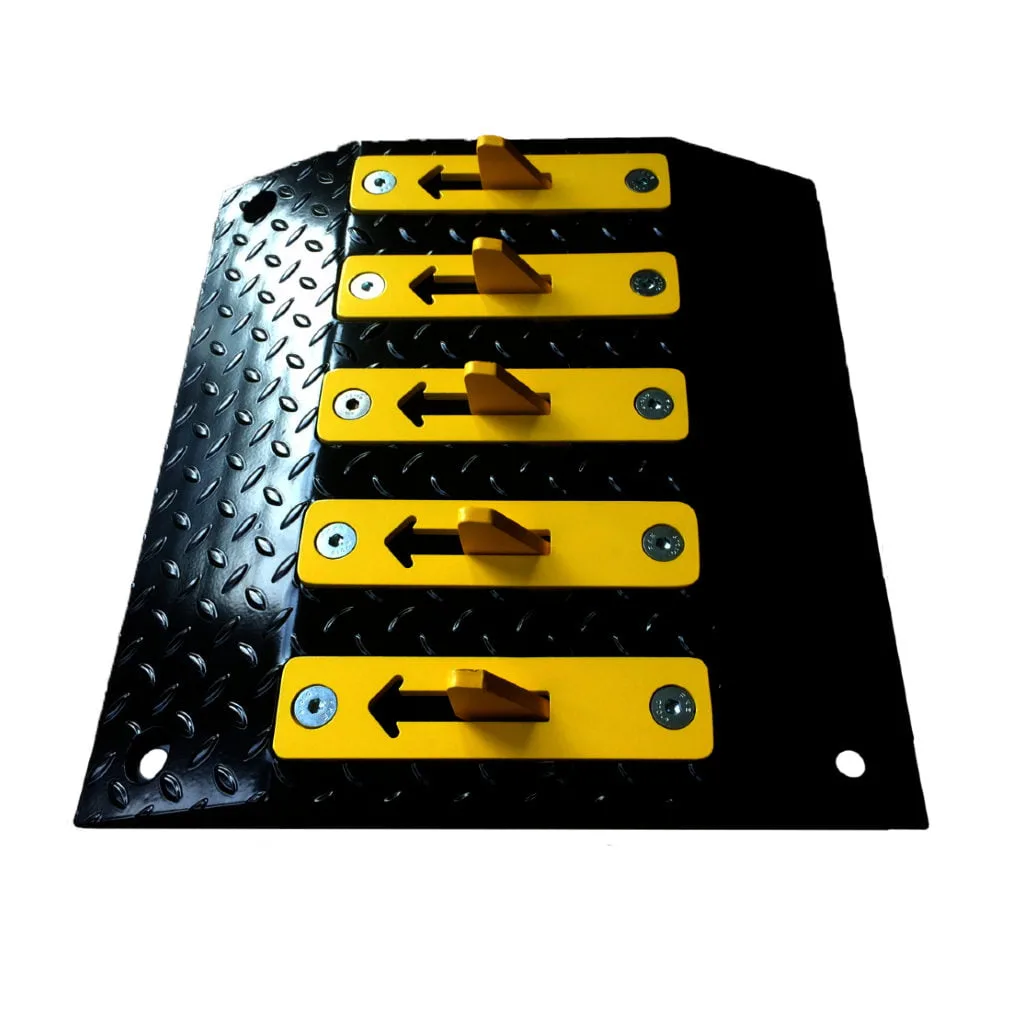

The use of sharks teeth flow plates are an excellent solution to stop vehicles travelling in the wrong direction. Flow plates and Directional Ramps are typically fitted in car parks, airports and hospitals however they are beneficial where a one way system would be required.
The FR-05 is a robust and heavy duty product manufactured in the UK, used nationwide and a popular choice. This product is fixed to the surface using 4 fixing bolts, easy to install and can be relocated with ease if required. For added visibility this product is finished in bright yellow.
Please note, while this product has not been designed to damage vehicles, travelling over the flow plate in the wrong direction there is a risk that this may cause damage to your tyres. We strongly advise the use of warning signage all traffic flow control products.
* Free fixings supplied are M12 x 100 concrete through bolt. For any other alternative fixing required this can be supplied and charged as extra. For pricing, please contact a member of our sales team.
High Traffic Areas, One way traffic flow
Cars & HGV's
500mm x 490mm x 100mm
|Flow Plate Material|
Heavy Gauge Steel

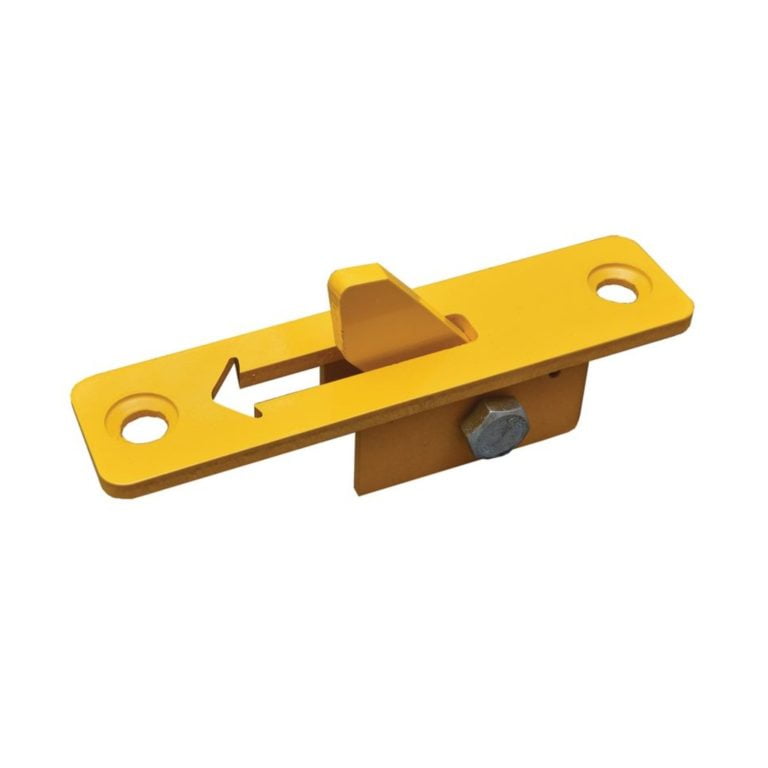

In-built counter balance & heavy duty spring
Surface Mounted – Concrete Fixings Included
Recommended every 12 month
